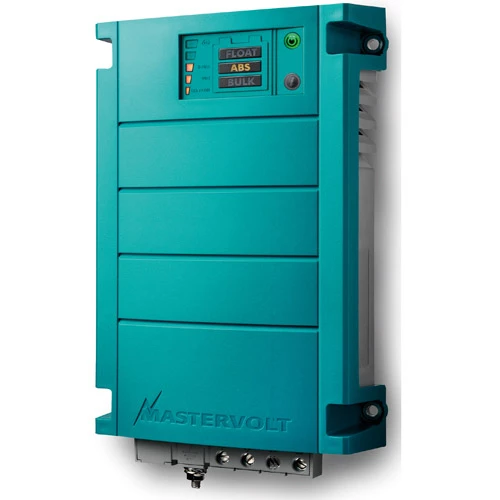

Mastervolt Power Charger No Masterbus Networking 20A

A charger that adapts to available power to provide
a consistant charge.

Mastervolt is an industry leader in top quality battery charging
and marine electrical systems. Exclusive to West Marine, the
PowerCharger is an excellent example of Mastervolt’s ability to
engineer cutting edge technology that thrives in marine
applications.

Intuitive controls and easy to read displays
remove the challenge of setting up and getting the most out of this
charger. This 3 bank charger features a fully automatic system to
provide multiple stage charging to a variety of battery types
including: flooded, AGM, gel and spiral batteries. A special stage
enables this charger to revive a dead battery’. A memory function
will prevent overcharging batteries. These efficient chargers
feature a universal input to be compatible with shore power service
worldwide and will automatically adjust to deliver a consistent
charge. Even in poor quality power situations, the charging power
does not decrease. The PowerCharger can provide DC power through an
included auxiliary power supply even if there are no batteries
connected.

Installation is made easier by a number of
features. Using high frequency switch mode technology, the
PowerCharger can be packed into compact and lightweight unit while
remaining extremely efficient (Power factor corrected >98%). An
ignition protected rating allows installation almost anywhere
aboard-including the engine compartment. Variable speed fans sense
and adjust to ambient temperatures to offer a consistent charge in
a wide range of environments. Captive screws and keyhole slots
allow installers to hang’ and secure the charger making
installation in space limited locations easier.

Ideal for boaters looking for a highly
efficient and compact battery charger that is easy to use. The
PowerCharger is an excellent choice for world cruisers and boaters
with  multiple battery bank DC systems wanting a fully
automatic battery charger that is packed with features.

Note: the Mastervolt PowerCharger is not compatible with
Mastervolt’s digital network. For a networkable charger select a
Mastervolt ChargeMaster battery charger.

Key Features

• Fully automatic multi-stage battery charger
• Universal input for worldwide use
• Compatible with flooded lead-acid, AGM, Gel and spiral
  batteries
• Set up and operation is made easier using intuitive controls
  and easy to read displays
• Provides consistent charge even in low quality dock service
  situations
• Temperature compensation with optional remote battery
  temperature sensor (Mastervolt part number 41500500)
• Input Wiring: AC hardwire terminals
• Output Wiring: Three positive terminals, one negative
  terminal
• Safety Features: Over- temp, shutdown, ignition protected,
  overload protection, surge and short circuit protection
• Compatible with optional Masterview Read-Out remote display
  (Mastervolt part number 77010050),
• Approvals: CE Certified, Meet ABYC and UL 1236 including marine
  supplement, ignition protected, EMC FCC Class B
• Dimensions and Weight:

Specifications:

Name	Value
Amperage	20 Amps
ISO Approved	Marine UL Approved FCC Class B
Multi Bank Chargers	3 Banks
Type	Chargers
Voltage	90-265 Volts AC 12 Volts DC
Warranty Details	Two Years
