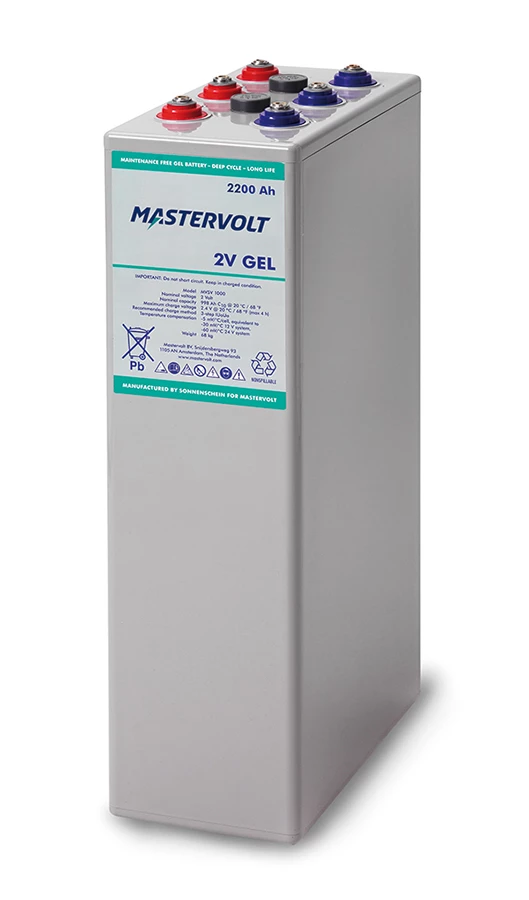

Mastervolt MVSV 2200 2V Gel Battery

MVSV 2200

This robust Gel battery is designed for regular and deep discharging (> 1000 full cycles), and is ideal for large systems that require intensive use and a very long lifespan.

The 2-volt traction batteries are available in capacities up to 2700 Ah. For a battery of 12 or 24 volt, six or twelve Gel batteries need to be connected in series to provide the required voltage. The required cables are included (please indicate desired length when ordering).

Features:

• Ideal for large systems that require intensive use and a very long lifespan.
• For intensive cycle use with a high number of charge/discharge cycles.
• Charges quickly.
• Highly sustainable battery for large installations.
• Robust build for longer lifespan.
• Deep discharging without problems.
• Can be installed horizontally or vertically.
• Seven year warranty (pro rata).

Specifications:

General specifications
Nominal battery voltage	2 V
Nominal battery capacity C10	2200 Ah
Max. charge current	1100 A
Terminals	F-M8
Max. outer dimensions (incl. terminals/grip handles), lxwxh	216 x 400 x 816 mm 8.5 x 15.7 x 32.1 inch
Weight	160 kg 352.7 lb

Product Data Sheet
