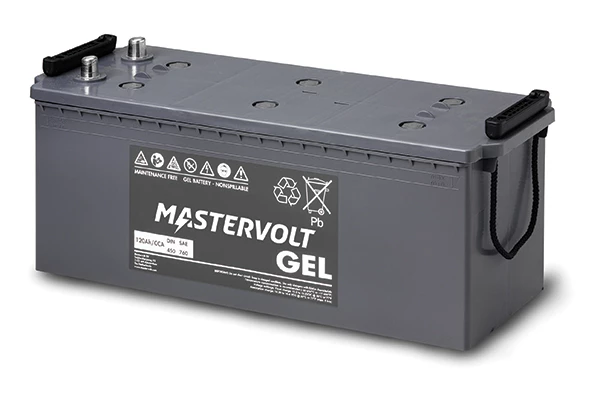

Mastervolt MVG 12/120 Ah Gel Battery

MVG 12/120

In Gel batteries, the electrolyte is absorbed by a Gel. This
type of battery is entirely maintenance-free and has no gas
formation with normal use. As no extra ventilation is required, Gel
batteries can be installed anywhere. They are ideal as service
battery and for cyclical use, and can be charged very quickly.

Features:

• Perfect service battery for medium sized and large 12 V and 24
  V systems.
• Extremely long lifespan.
• No gas formation with normal use.
• Fast recharge, high charge current possible.
• For intensive cycle use with a high number of charge/discharge
  cycles.
• Very low self-discharge.
• High return on investment.
• Two year warranty.

Specifications:

Specifications

General specifications
Nominal battery voltage	12 V
Nominal battery capacity C20 (battery capacity at a discharge time of 20 hours, till 10.5 V per battery)	120 Ah
Max. charge current	60 A
Battery terminals	A-type
Max. outer dimensions (incl. terminals/grip handles), lxwxh	513 x 189 x 223 mm 20.2 x 7.4 x 8.8 inch
Weight	41 kg 90.4 lb
Technical specifications
CCA to DIN	450 A
CCA to SAE	760 A
