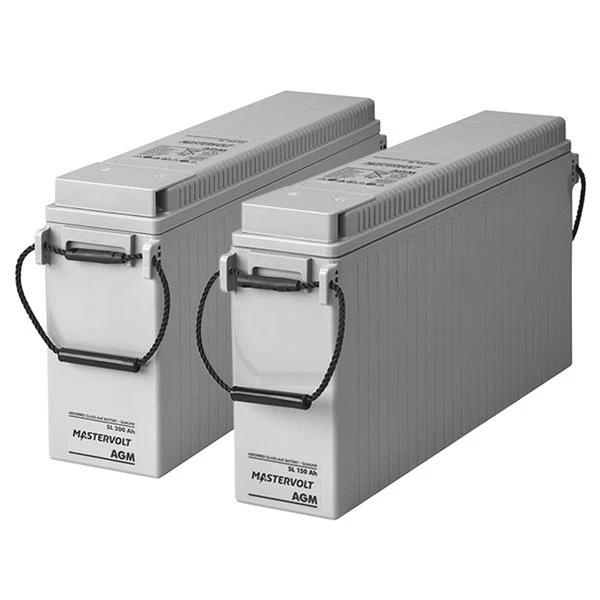

Mastervolt MV SL12/150 Ah AGM Battery

Pack more power into the same space with slim-line
AGM batteries. They’re sealed, more rugged, accept higher charging
current, and safer

AGM (absorbed glass mat) batteries are great in both deep cycle
and starting applications. They charge more quickly than
conventional batteries, have low 3% monthly self-discharge rates
and are maintenance-free-no need to add water. The
spill-proof, valve-regulated design eliminates acid spills and
terminal corrosion. AGM batteries are safer to operate
than conventional flooded batteries, as the chance of
explosion or acid spray is reduced which allow them to be installed
in almost any location and any position
(except upside-down).

Mastervolt Slimline AGM batteries provide more options for
installation. With their narrow profile, they can be mounted on
their side to maximize locker space while keeping your boat’s (or
RV’s) center of gravity low. Slimline batteries have a 15% smaller
footprint than conventional batteries and are a great way to pack
more amp-hours (Ah) into a limited space. For example, a 300Ah bank
will sit in an 11′ x 23′ x 12′ space. Mastervolt’s compressed AGM
technology also reduces the pound per Ah to offer a larger battery
bank with a smaller weight penalty.

Key Features

• Saves significant weight and take up 15% less space over
  conventional batteries
• Removable terminals that can be changed to adapt to existing
  wiring (additional terminals sold separately)
• Capable of fast discharge at high currents for starting
  applications
• Faster charging that conventional flooded batteries
• Resist vibration and damage that can shorten the life of a
  battery
• Compressed AGM design can be installed in multiple positions
  (except upside-down)
• Maintenance free

Specifications 12/185

• Group Size: Specialty
• Terminal Type: M6 (6mm bolts)
• Amp Hours (Ah): 185
• Cold Cranking Amps (CCA): 930
• Marine Cranking Amps (MCA): N/A
• Reserve Minutes: N/A
• Weight: 113 lbs.
• Dimensions: 22’L x 5’W x 11’H
• Warranty: Two-year warranty

Specifications 12/150

• Group Size: Specialty
• Terminal Type: M6 (6mm bolts)
• Amp Hours (Ah): 150
• Cold Cranking Amps (CCA): 790
• Marine Cranking Amps (MCA): N/A
• Reserve Minutes: N/A
• Weight:3 lbs.
• Dimensions: 22’L x 4 3/8’W x 11’H
• Warranty: Two-year warranty

Core charge will apply to battery purchase if an old 12V
battery is not exchanged at the time of purchase.

Specifications:

Name	Value
Amperage Hours	150
Battery Type	AGM
Best Use	Dual Purpose Deep Cycle
Cold Cranking Amps	700 CCA
Dimensions	4 1/4′ Width x 11′ Height x 22′ Length
Marine Cranking Amps	1020 MCA
Reserve Minutes	250
Type	Threaded Insert
Voltage	12 Volts DC
Warranty Details	Two Years
