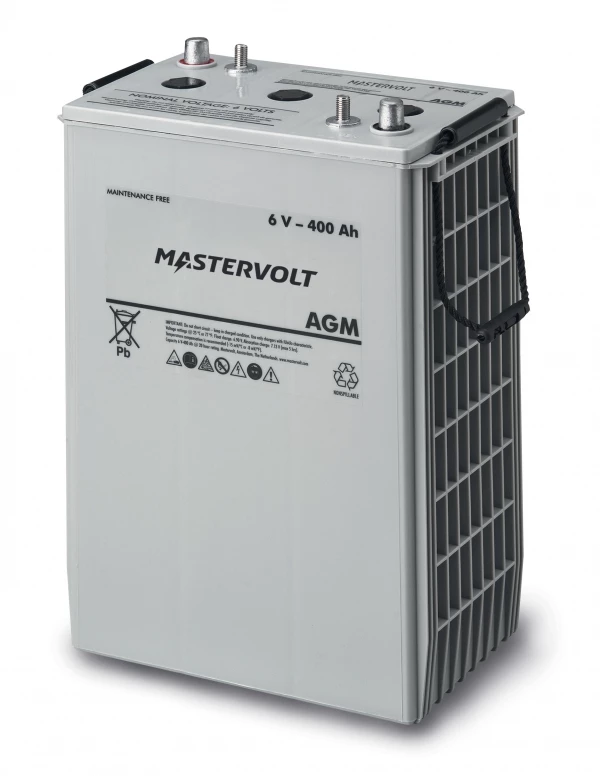

Mastervolt MV 6V 400Ah AGM Battery

Maintenance-free and easy to install

In AGM batteries, the electrolyte (mixture of water and sulphuric acid) is largely absorbed in glass fibre. The Mastervolt MV AGM Battery is entirely maintenance-free and there is no gas formation with normal use. AGM batteries can be installed anywhere.

Their construction gives a very fast discharge at very high currents so AGM batteries are ideal for systems that require high currents (for instance when starting an engine). The battery poles can be unscrewed and this type of battery can be combined with every standard battery terminal.

Mastervolt MV AGM Battery Features:

• Offers an alternative solution in placement
• Easy configuration of 12/24/48 V battery banks, with high capacity
• Double pole for easy installation
• No gas formation with normal use
• Can be combined with every standard battery terminal

Mastervolt MV AGM Battery Specifications:

• Nominal battery voltage: 6 V
• Nominal battery capacity C20: 400 Ah
• Max. charge current: 110 A
• Terminals: A-type + stud M10
• Max. outer dimensions (incl. terminals/grip handles), lxwxh: 295 x 180 x 428 mm (11.6 x 7.1 x 16.9 in)
• Weight: 53 kg (116.8 lb)
• CCA to DIN: 620 A
• CCA to SAE: 1100 A
