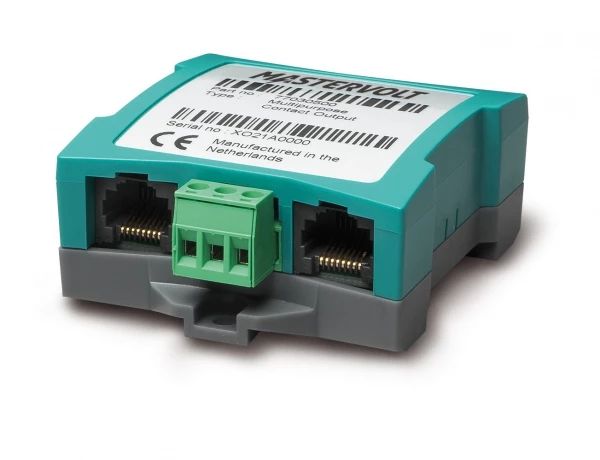

Mastervolt Multipurpose Contact Output

Multipurpose Contact Output

MasterBus controllable potential-free contact, with alarm
notification on the onboard system (low voltage or no AC), usable
as CSI alarm contact.

This potential-free programmable contact can be customised and
programmed to give your MasterBus network unprecedented
possibilities. Use it, for example, to control a ventilator, or to
operate a generator.

Specifications

General specifications
Potential free contact	NO-C-NC – 1 A / 30 V DC
MasterBus powering	no
Dimensions, hxwxd	66 x 78 x 32 mm 2.6 x 3.1 x 1.3 inch
Weight	0.08 kg 0.2 lb
Delivered with	MasterBus cable, MasterBus terminator, user’s manual
Technical specifications
Protection degree	IP21

Product Data Sheet
