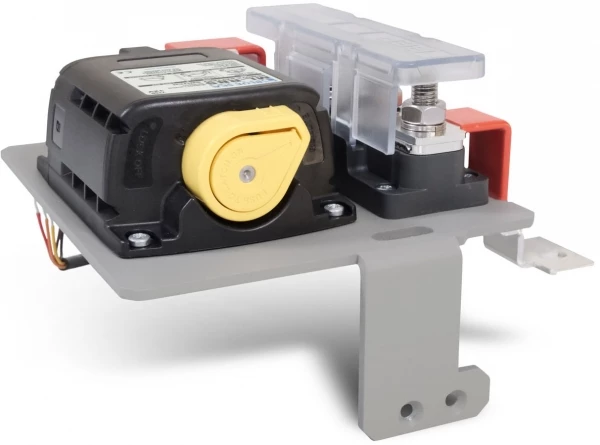

Mastervolt MLI Ultra Relay And Connection Kit 24V

Ultra Connection Kit 24 V

With the MLI Ultra Relay and Fuse Connect Kit, you can easily install all the required safety accessories in a safe, efficient, and compact way right on top of the MLI Ultra battery.

Without the need for power tools, you can get your system, safe and ready in just a few simple steps.

Features:

• Fast and easy installation.
• All necessary safety accessories in one kit.
• Pre-assembled on an easy to mount bracket.
• Perfect fit for MLI Ultra 24/5500.

The T-fuse itself is not included in the kit. Order the right fuse rating (max. 300 A) based on the requirements of your installation.



Specifications:

General specifications
Compatibility	MLI Ultra 24/5500
Max. current	300 A
Operating temperature	-25 degreesC to 50 degreesC -13 degreesF to 122 degreesF
Dimensions	total height increases by 65 mm / 2.5 inch
Weight	total weight increases by 2 kg 0.0 lb
Delivered with	mounting bracket, safety relay, T-fuse holder, busbar conductor (2x)
Technical specifications
Safety relay	24 V DC – 500 A
Max. voltage	64 V
