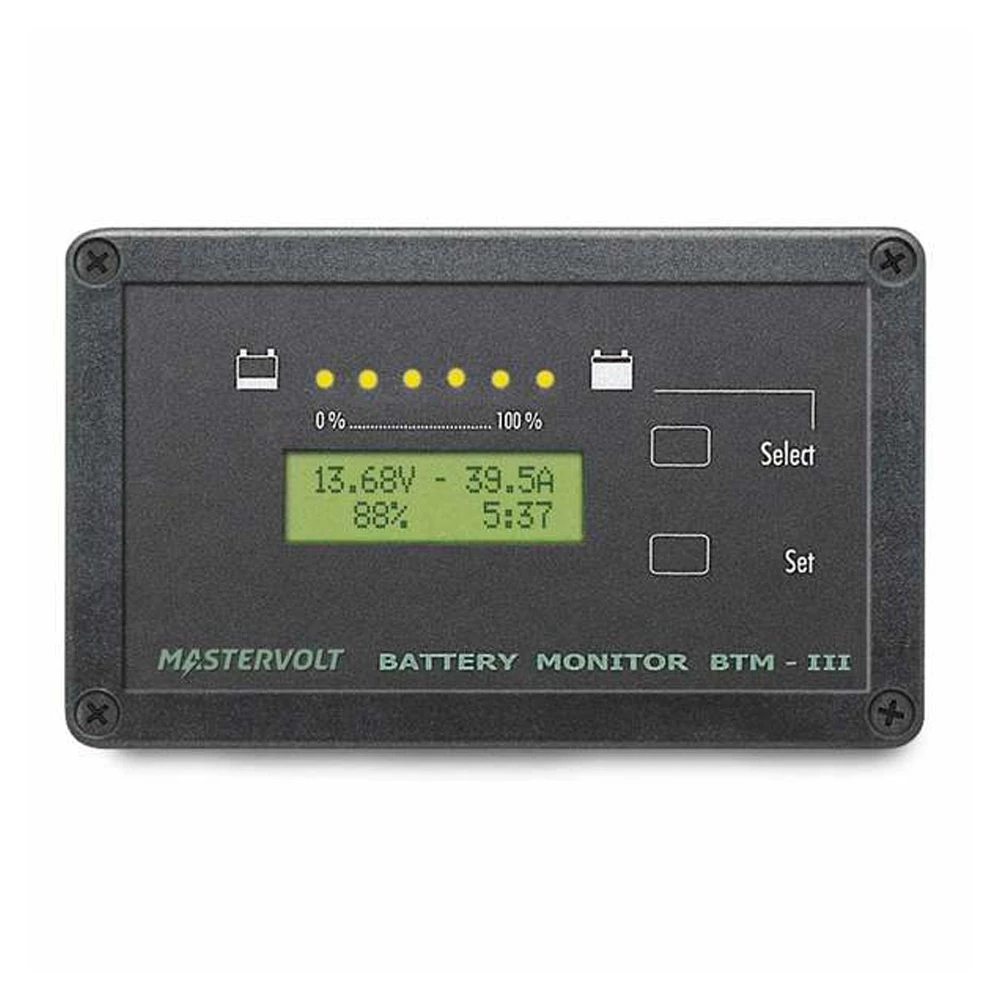

Mastervolt Masterlink Btm-III Battery Monitor

Monitor up to 3 battery banks for a single
display.

Keep track of vital battery bank information from one convenient
display. The Masterlink BTM-III battery monitor gathers voltage,
current, Ah, time remaining and remaining capacity (in percentage
terms) data for up to 3 battery banks. The information can be
displayed in a number of different ways. Users can select to have
all three battery levels displayed on a single screen or elect to
page through each bank and have more specific battery information.
Additional LEDs indicators offer a simple and quick to read visual
display of battery level. The well-lit LCD screen also displays
historical information.

In a system with only two battery banks the input of the third
bank can be used as a backlight input. If you connect this with the
navigational lights, for example, both will turn on simultaneously.
The BTM-3 includes ten languages: English, French, German, Spanish,
Italian, Dutch, Norwegian, Danish, Swedish and Finnish.

This panel is suitable for MasterVision, Mastervolt’s modular
central switchboard with various monitoring functions. The included
shunt, a measurement device for accurate reading of on board
systems and batteries, should be placed close to the battery. For a
high current system an optional 1000A Shunt is available.

Key Features

• Gathers and displays battery information for up to 3 battery
  banks
• Can display battery levels of all 3 banks on one screen or
  individual banks with more detailed information
• Provides:
  • Voltage
  • Current
  • Ah
  • Remaining capacity (in time)
  • Remaining capacity (in percentage terms)
  • Includes
• Stores historical data
• Includes shunt for use with systems up to 35V
• Optional higher capacity shunt available for higher current
  systems

Specifications:

Name	Value
Type	Battery Monitor
Voltage	12 Volts DC
Warranty Details	Two Years
