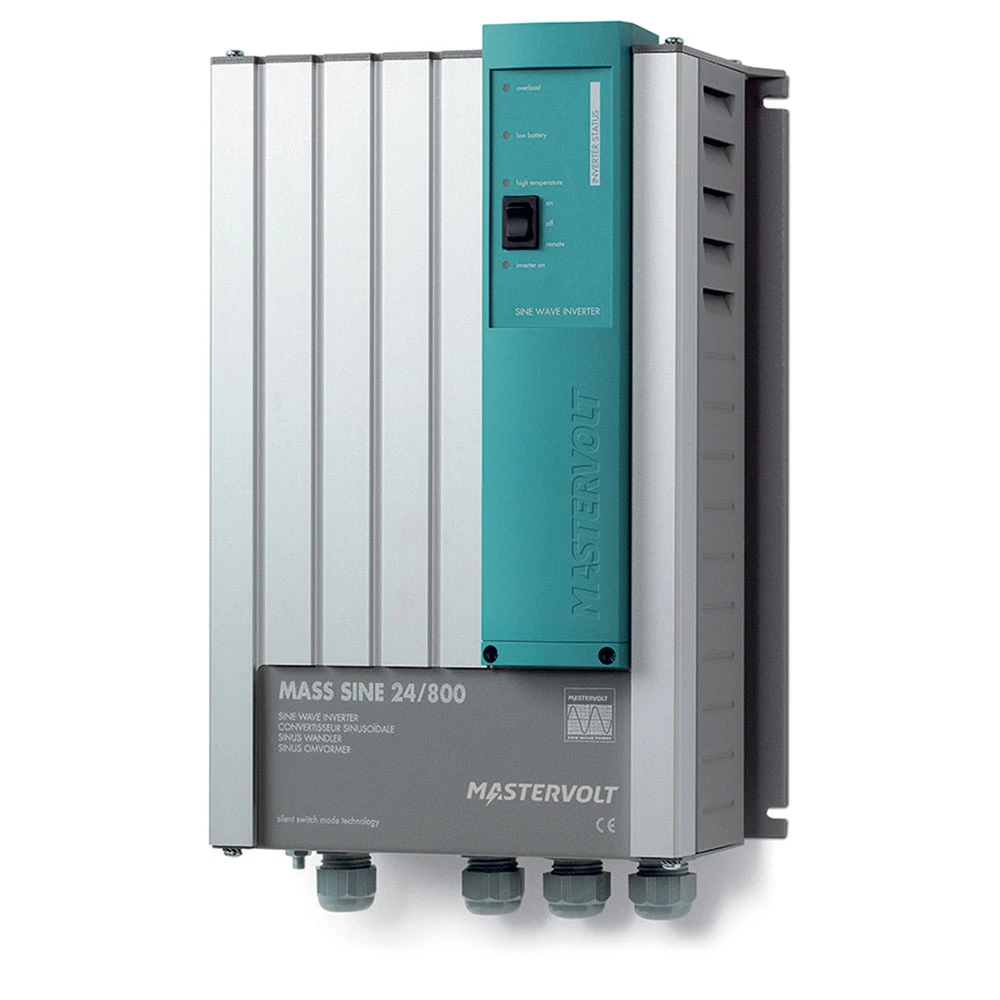

Mastervolt Mass Sine Pure Sine Wave Inverter 24/800 230V/50Hz

Mass Sine 24/800 (230V/50Hz)

Even under the most extreme conditions the products from the
Mass series operate faultlessly, giving you round-the-clock output
when necessary. With an MTBF of 180,000 hours at full capacity and
24/7 use, the Mass products are ideal for the toughest tasks and
any situation that requires a reliable power supply.

Optimal flexibility in system design

Choosing an independent sine wave inverter allows you complete
freedom of choice of battery charging equipment. You can freely
adapt the rating of these chargers, depending on the desired charge
time. In case you want to use renewable energy sources, you may
want to choose an MPPT solar charge regulator.

High Yield

The high yield and automatic economy mode are designed to allow
digital clocks to work properly and ensure you many more hours of
operation from your batteries. The application of high-frequency
technology prevents any annoying humming and zooming sounds, while
the high peak capacity ensures that the high inrush current
required for electrical tools, for example, is seamlessly
produced.

Clear Indicators

The Mass Sine features easy controls on the device itself. As
inverters are often built in,Mastervolt also supply an effective
remote control panel, the C4-RI. In addition, the Mass Sine can be
controlled via its intuitive display, the EasyView 5, thanks to the
integration of MasterBus communication using a MasterBus Inverter
Interface or AC Power Analyser.

Easy and safe connections

The Mass Sine inverters provide robust and professional
connections for fast and safe installation.

Features

• For heavy duty work in professional and semiprofessional
  applications.
• Full capacity at temperatures up to 40 degreesC.
• Pure sine wave output prevents failures and damage to connected
  sensitive equipment.
• High peak capacity for the seamless switching on of complex and
  heavy loads.
• MasterBus compatible.
• Suitable for mobile applications.
• Professional connections.
• Automatic, reliable and safe operation.
• Optional: Masterswitch/Systemswitch for automatic selection of
  the desired energy source.

Specifications:

Specifications

General specifications
Output voltage (plus or minus 5 %)	230 V – 50 Hz (plus or minus 0.01 Hz)
Output waveform	true sine
Nominal battery voltage	24 V
Recommended battery capacity	> 50 Ah
Continuous power at 40 degreesC / 104 degreesF, cos phi 1	650 W
P30 power at 40 degreesC, cos phi 1	800 W
Peak load	1600 W
AC connection	internal
Efficiency	92 %
Display/read-out	LED display
Dimensions, hxwxd	325 x 220 x 111 mm 12.8 x 8.7 x 4.4 inch
Weight	3.8 kg 8.4 lb
Approvals	CE, E-mark, ABYC A-31
Technical specifications
Technology	HF switch mode
Low battery voltage, switches off at	19 V, plus or minus 0.5 V
Low battery voltage, switches on at	22 V, plus or minus 0.5 V
High battery voltage, switches off at	32 V, plus or minus 0.5 V
High battery voltage, switches on at	30 V, plus or minus 0.5 V
Max. ripple on DC (battery)	5 % RMS
Input current (nominal load)	36 A
No-load power consumption (ON mode)	240 mA – 5.6 W
No-load power consumption (energy saving mode)	35 mA – 0.8 W
Minimal DC fuse (slow blow)	63 A
Minimal cable size	16 mm
Harmonic distortion typical	< 5 %
Cos phi	all power factors allowed
Transfer system	the Masterswitch and Systemswitch can be connected to all sine wave inverters
Temperature range (ambient temp.)	-25 degreesC to 80 degreesC, derating > 40 degreesC -13 degreesF to 176 degreesF
Cooling	natural/forced
Protection degree	IP23
Protections	over-temperature, over load, short circuit, high/low battery voltage
MasterBus compatible	yes, using a MasterBus Inverter Interface or AC power analyser
