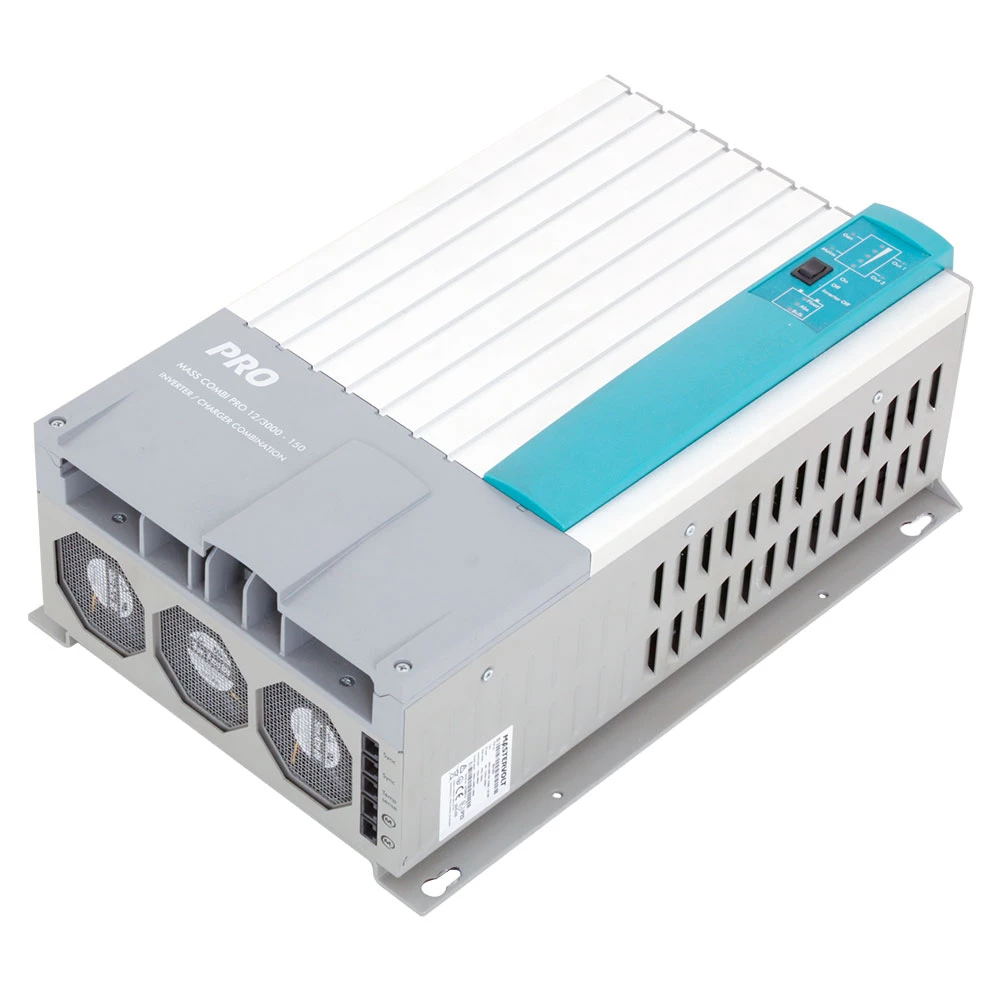

Mastervolt Mass Combi Pro 12/3000-150 Pure Sine Wave Inverter Charger 230v

Quiet operation, exceptional performance

The Mastervolt Mass Combi Pro Inverter Charger‘ new ‘V6’ inverter
technology ensures a uniquely low stand-by use, while an ultra-fast
Digital Signal Processor guarantees seamless switching between all
available energy sources. Power Assist prevents power dips and
failures, even with a weak electricity connection or small
generator.

Quiet operation
The Combi Pro can provide up to 50 % of the charging current or
inverter capacity without fan cooling. This is perfect for
night-time operation; if little power is consumed, the fan stops
turning and goes silent. When maximum capacity is required, or the
ambient temperature is very high, the Active Optima Cooling concept
regulates the fan speed in a linear way, ensuring that it never
spins too fast or makes any unnecessary ticking noises.

Exceptional performance
The inverter is quiet, clean and efficient, and offers the full
capacity even in extreme ambient temperatures. Pure sine wave
energy and a peak capacity of 200 % guarantee a problem-free start,
even for the heaviest loads.

Optimal battery use
The powerful battery charger provides a full charge current in
ambient temperatures up to 40°C. Meticulous load properties and a
low ripple current guarantee a long battery life.

Mastervolt Mass Combi Pro Inverter Charger
Features:

• Quiet operation
• Exceptional performance
• Optimal battery use
• ‘V6’ inverter technology
• Ultra-fast Digital Signal Processor
• Power Assist

Mastervolt Mass Combi Pro Inverter Charger
Specifications:

General

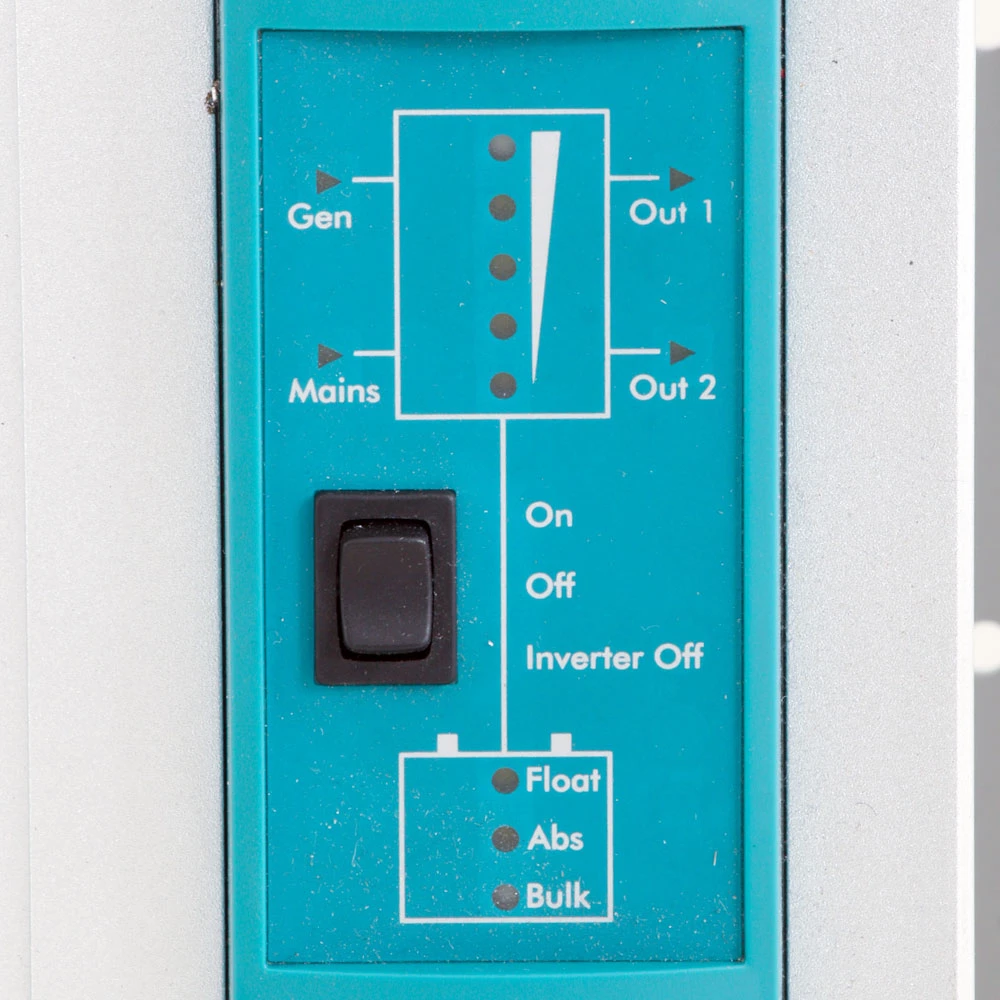

• Display/read-out: LED display
• Dimensions, hxwxd: 472 x 318 x 178 mm (18.6 x 12.5 x 7.0
  inch)
• Weight: 15.3 kg (33.7 lb)
• Approvals: CE, ABYC

Technical

• Charge characteristic: 3-step+ (IUoUo, fully
  automatic)
• Battery types: AGM/gel/MLI/flooded/spiral/traction
• Recommended battery capacity: ~ 300-900 Ah (based on gel
  batteries, may differ for other types)
• Ground relay: yes, configurable
• Temperature range (ambient temp.):
  -25 °C to 60 °C, derating > 40 °C
  -13 to 140 °F
• Protection degree: IP23 (vertical mounting)
• Safety class: IEC protection class I
• Humidity protection: conformal coating, max. 95 % relative
  humidity, non condensing
• Protections: over temperature, overload, short circuit,
  high/low battery voltage

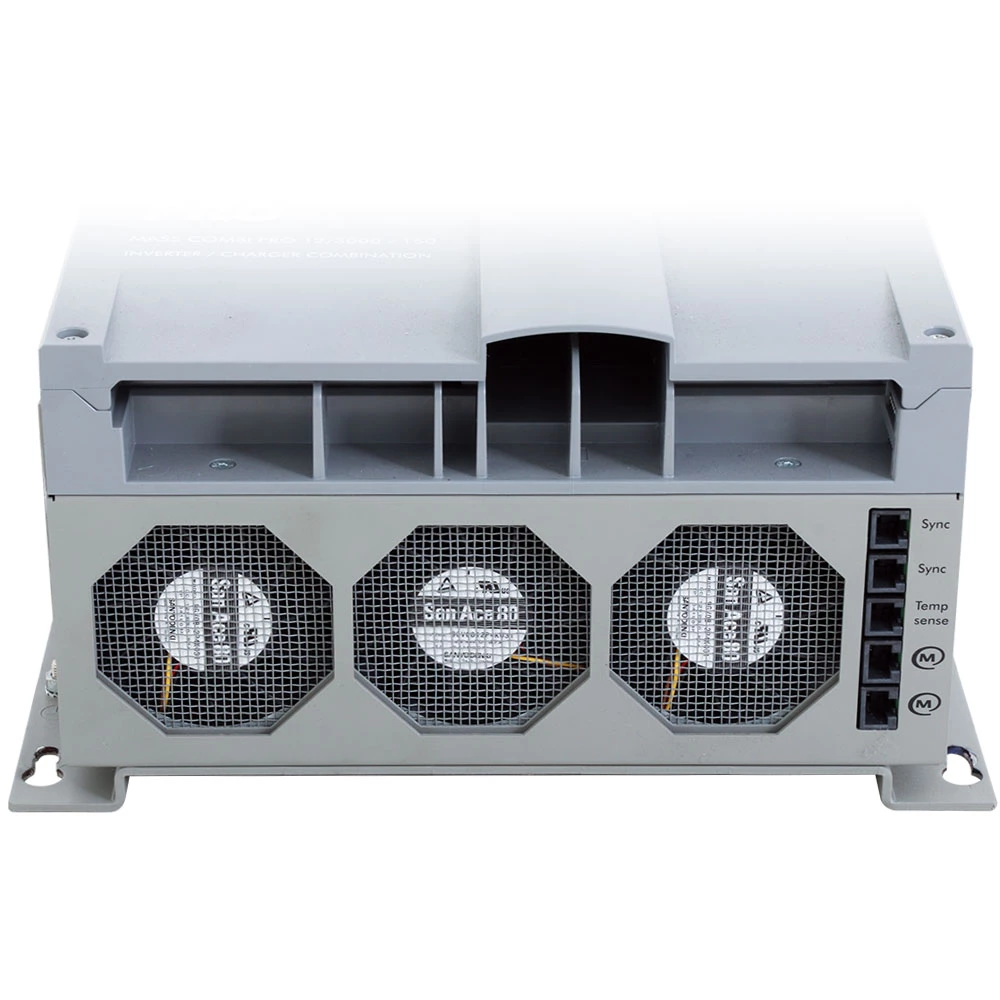

• Cooling: maintenance free vario fans
• Power Assist: yes
• MasterBus compatible: yes

Sine Wave Inverter

• Nominal DC voltage: 12 V (9.5–16 V)
• Output voltage: 230 V (± 2 %), adjustable 180-260 V
• Output frequency: 50/60 Hz (± 0.005 %), configurable
• Output waveform: true sine, Thd < 1 % under standard
  conditions
• Continuous power at 40 °C / 104 °F, cos phi 1: 3000 W
• Max. peak load: 6000 W
• Max. efficiency: ≥ 90 %
• Max. ripple on DC (battery at full load): < 5 %
• No-load power consumption on DC (ON/inverter OFF/OFF/energy
  saving): 16 W / 4 W / 0 W / 7 W
• Parallel configuration: yes, up to 10 standard
• 3-Phase configuration: yes, up to 3×3
• Synchronise with mains/generator: yes

Battery Charger

• Input voltage range: 184–275 V
• Max. input current: 12 A
• Max. charge current at 40 °C / 104 °F: 150 A at 14.25 V,
  adjustable
• Battery temperature sensor: yes, included
• Battery voltage sense: through MasterShunt, otherwise automatic
  compensation

Transfer System

• AC input 1: 50 A (generator only, switched)
• AC input 2: 30 A (mains only, switched)
• AC output 1: 67 A
• AC output 2: 50 A (switched)
• AC input fuse: no
• Transfer speed: seamless (< 1 ms)
• Transfer voltage range: 184-275 V, adjustable
• Transfer frequency range: 35-68 Hz, adjustable
