Mastervolt Mass Combi 24/4000-100 120 V

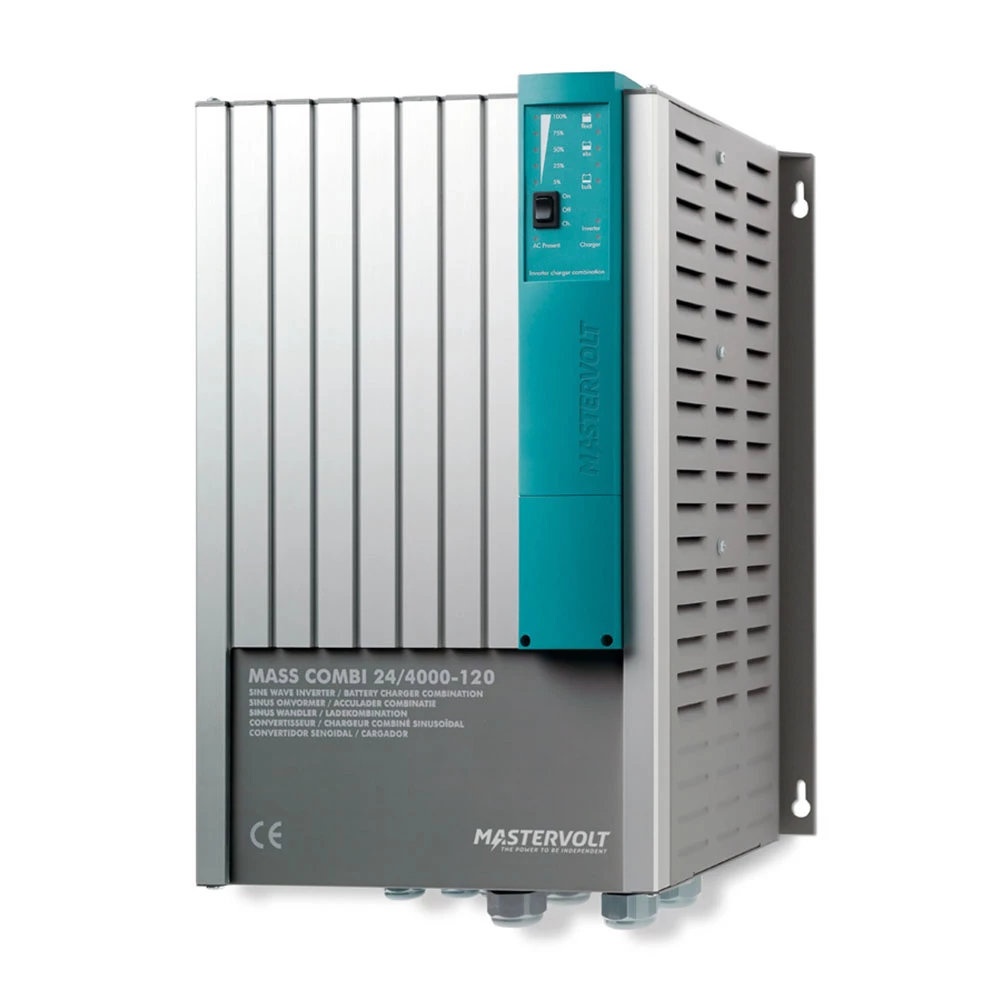

Mass Combi 24/4000-100 (120 V)

The Mastervolt Combi literally combines’ an advanced battery
charger and silent-running inverter in one remarkably compact
device. But that isn’t all: it also adds extra functionality. This
includes Power Assist, system paralleling and secondary battery
charging. This makes the Combi your ideal solution for a wide range
of needs, from low power recreational use right up to full-on, high
power industrial applications.

Versatility in power supply

Every model of the Mastervolt Combi is highly versatile, so
using one greatly simplifies installation. This single product not
only brings you fast and complete charging of your starter and
service batteries, it also provides a silent, robust and clean AC
power supply. Multiple AC outputs allow heavy-draw items to be
separated from the most critical equipment, making sure they don’t
unintentionally deplete your batteries. The AC inputs facilitate
both mains and generator connections, which the Combi can support
with additional power if your loads require more than either can
provide. Essentially, just this one product can handle all the
power requirements in an autonomous system.

Modern technology

The unique design of the Combi range is typically Mastervolt.
Rather than installing heavy transformers, you can use Mastervolt’s
high-frequency technology for major benefits in terms of compact
size, a lightweight chassis and silent running (there is no
transformer hum).

Perfect in a MasterBus system

Designed for system compatibility, the Mastervolt Combi fits
perfectly into a MasterBus system. The network will allow you to
easily control and monitor your product, while also optimising the
configuration to your needs. In addition, the internal
communication between other MasterBus products in your system can
even boost the overall electrical performance.

Benefits of the Mass Combi

• Compact, lightweight and no hum thanks to HF technology.
• High yield and more power from your batteries.
• Intelligent 3-step+ battery charger with low DC ripple current
  for fast charging times and long battery life.
• Charges two individual battery banks simultaneously.
• Quiet, powerful inverter with 200 % peak power.
• Power Assist: extra power assistance from the batteries in case
  of limited grid or generator power (prevents blown fuses).
• Pure sine wave energy prevents failures and damage to sensitive
  equipment such as adapters.
• Dual AC outputs to separate critical equipment from heavy
  loads.
• Higher yields possible via parallel switching (only 2500 W
  models).
• Professional connections ensure fast installation and
  operational security.
• CE approved and E-marking for mobile applications.

Specifications:

Specifications

Specifications sine wave inverter
Nominal DC voltage	24 V (19-31 V)
Output voltage	120 V (plus or minus 5 %), adjustable 90-135 V
Output frequency	60/50 Hz (plus or minus 0.05 %), configurable
Output waveform	true sine, Thd < 2.5 % under standard conditions
Continuous power at 25 degreesC / 77 degreesF, cos phi 1	3750 W
Max. peak load	7500 W
Max. efficiency	? 90 %
Max. ripple on DC (battery at full load)	< 5 %
No-load power consumption on DC (ON/inverter OFF/OFF)	18 W / 0.2 W / 0 W / 1 W
Parallel configuration	no
3-Phase configuration	no
Synchronise with mains/generator	yes
Specifications battery charger
Input voltage range	90-135 V
Max. input current	29 A
Max. charge current at 25 degreesC / 77 degreesF	120 A at 28.5 V, adjustable
Secondary charger output voltage	24 V
Secondary charger output current	2x 5 A
No-load power consumption on AC	< 30 W
Battery temperature sensor	yes, included
Battery voltage sense	automatic compensation
Specifications transfer system
AC input (generator)	50 A (25 A switched, to short break output)
AC output 1	35 A (short break output)
AC output 2	50 A (power output)
AC input fuse	yes, resettable
Transfer speed	half seamless (25 ms max., 10 ms typical)
Transfer voltage range	90-135 V
Transfer frequency range	45-65 Hz
General specifications
Display/read-out	LED display
Dimensions, hxwxd	496 x 318 x 279 mm 19.5 x 12.5 x 11.0 inch
Weight	21 kg 46.3 lb
Approvals	CE, ABYC
Technical specifications
Charge characteristic	3-step+ (IUoUo, fully automatic), Equalize
Battery types	AGM/gel/MLI/flooded/spiral/traction
Recommended battery capacity	approx. 200-600 Ah (based on gel batteries, may differ for other types)
Ground relay	yes, configurable
Temperature range (ambient temp.)	-25 degreesC to 60 degreesC, derating > 25 degreesC -13 degreesF to 140 degreesF
Cooling	maintenance-free vario fans
Protection degree	IP23 (vertical mounting)
Safety class	IEC protection class I
Humidity protection	conformal coating, max. 95 % relative humidity, non condensing
Protections	over temperature, over load, short circuit, high/low battery voltage
Power Assist	yes
MasterBus compatible	yes, in combination with a MasterBus Combi Interface
