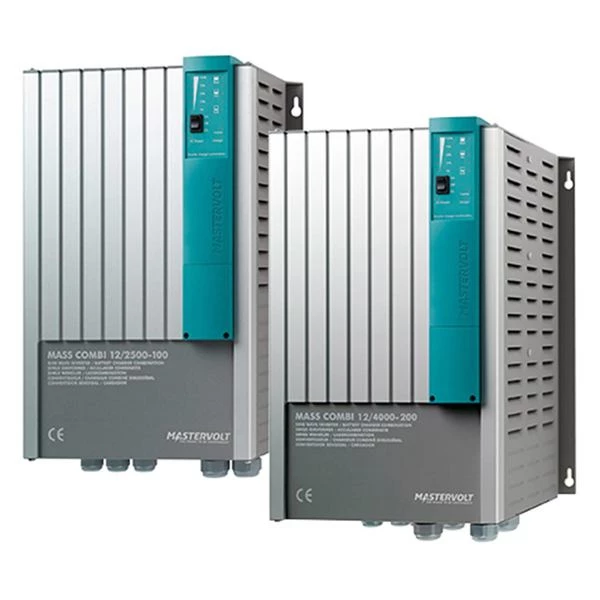

Mastervolt Mass Combi 12/2500-100 120V

Advanced technology packs this silent
inverter/charger with features.

Mastervolt is an industry leader in developing top quality
components for marine electrical systems. The Mass Combi is an
excellent example of Mastervolt’s ability to engineer cutting edge
technology that thrives in marine applications. Like many other
Mastervolt products, this inverter/charger can be used in
stand-alone applications or as part of a complete vessel system
using the MasterBus network.

At half the weight, the Mass Combi pure sine
wave inverter/chargers, consume less than half the power of
traditional inverter/chargers. Utilizing high-frequency switch mode
technology for greater efficiency, the Mass Combi combines a
professional-grade inverter, automatic transfer switch and advanced
three-stage-plus battery charger-all in a lightweight, compact
design.

Pure, clean sine wave AC power is the only
choice for sensitive electronics, and high surge ratings let you
operate motor loads, so you can power up your laptop or air
condition the cabin for comfort. Dual outputs separate heavy loads
to ensure critical equipment remains isolated.

Power Sharing feature allows Mass Combi to be
programmed so that when particular high-amperage loads turn on, the
charger automatically de-rates, eliminating nuisance tripping of
the shore breaker.

Charging up to three banks the Mass Combi is
compatible with flooded, gel or AGM batteries. A three stage
programmable charger has a special charge profile to revive a ‘dead
battery’. Built-in memory retains settings to prevent overcharging
in the event of inconsistent shore power service. Charge profiles
can be set by the user to match required battery charging amps.

Includes ICC Remote Panel, and battery
temperature sensor with cable. Built in compatibility with the
MasterBus system allows the Mass Combi to connect to the network to
share data and allows these inverter/chargers to be control
remotely within the boat or from anywhere using an optional SMS
technology.

Key Features

• Compact, lightweight and quiet inverter/charger
• High frequency switch mode technology ensures silent
  operation
• Compatible with MasterBus networks for remote control and to
  share inverting and charging data
• Pure sine wave provides AC current safe for sensitive
  electronics
• Dual AC outputs isolate larger AC loads from critical
  components
• Power Assist feature prevents blown fuse by providing extra
  power from the batteries when shore power or generator cannot keep
  up with loads
• Provides more power from your batteries
• User settable low battery cutoff, shore power current, power
  boosting and power sharing functions
• Programmable 3 stage charging for efficient charging that
  extends battery life
• Capable of charging 2 battery banks simultaneously
• User settable battery chemistry, charging voltage, charger amps
  and charger only function
• Includes ICC remote panel
• Approvals: CE Certified, E certified according to automotive
  directive 95/54/EG, meets UL and ABYC requirements

Specifications:

Name	Value
Amperage	100 Amps
ISO Approved	CE Certified E Certified According to Automotive Directive 95/54/EG Meets UL and ABYC Requirements
Multi Bank Chargers	1 Bank
Output Waveform	Pure Sine Wave
Type	Inverter/Charger
Voltage	12 Volts DC
Warranty Details	Two Years
Wattage	2500 Watts Continuous/5000 Watts Peak
