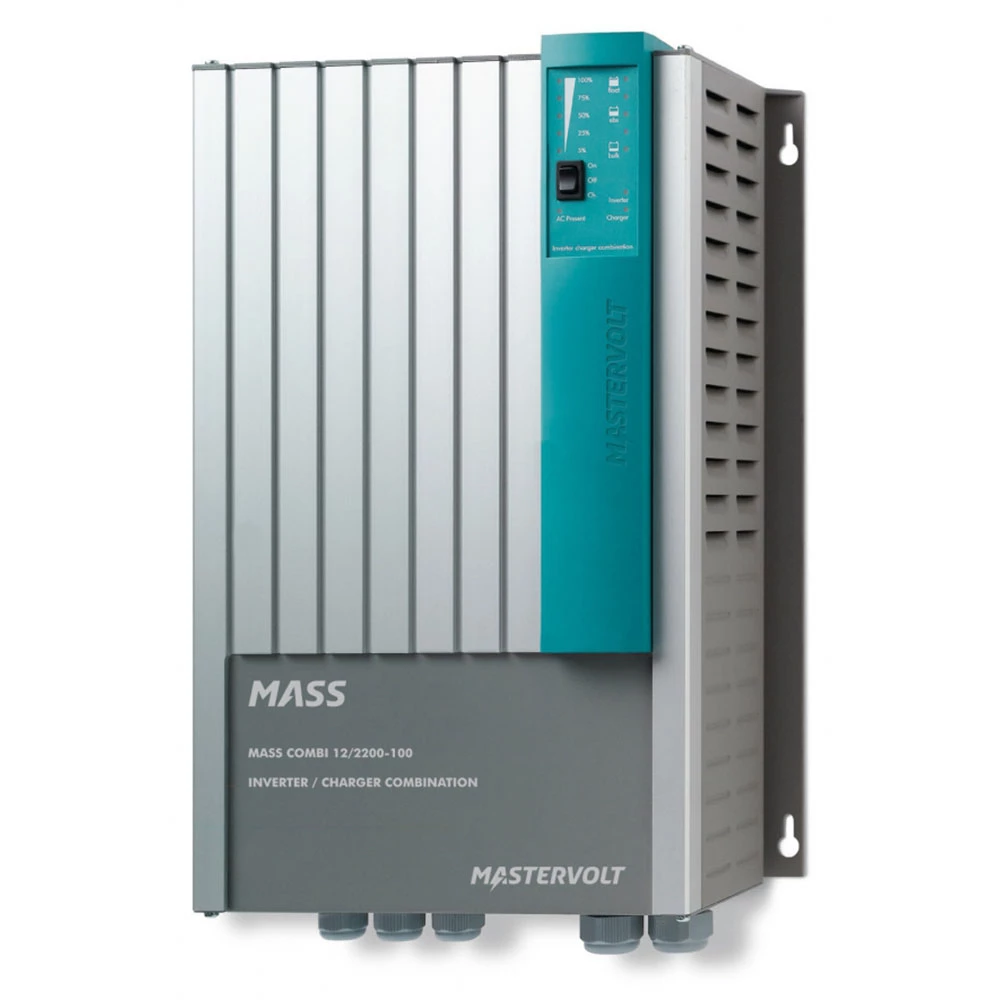

Mastervolt Mass Combi 12/2200-100 Remote 230 V

Mass Combi 12/2200-100 Remote (230 V)

Delivery includes Mass Combi 12/2200-100 + ICC remote
panel + Apc remote panel.

A Mastervolt Mass Combi offers best price/quality ratio. The
exceptionally reliable Mass Combi series offers a lot of power at a
highly competitive price. In addition, the four models are also
available in two customer-friendly variations with remote control
or MasterBus.

The powerful 3-step+ battery charger guarantees maximum battery
life and can simultaneously charge two battery banks. The inverter
with high peak power starts even the heaviest loads, with the Mass
Combi 12/1600 being easily sufficient for your espresso machine. A
built-in distribution system switches between grid and inverter
power, while two separate AC outputs allow users to connect
critical loads to a preferred group.

Grid connected solar power system with energy
storage

The Mass Combi enables the expansion of a in batteries. This way
the majority of the generated energy is used, and users are less
dependent on the electricity grid. In this setup, the Mass Combi is
part of a MasterBus controlled system.

Benefits of the Mass Combi:

• Compact, lightweight and no hum thanks to HF technology.
• High yield and more power from your batteries.
• Intelligent 3-step+ battery charger with low DC ripple current
  for fast charging times and long battery life.
• Charges two individual battery banks simultaneously.
• Quiet, powerful inverter with 200 % peak power.
• Power Assist: prevents blown fuses.
• Pure sine wave energy prevents failures and damage to sensitive
  equipment such as adapters.
• Dual AC outputs to separate critical equipment from heavy
  loads.
• Higher yields possible via parallel switching (only for 2200
  and 2600 W models).
• Professional connections ensure fast installation and
  operational security.
• CE approved and E-marking for mobile applications.

Maximise your convenience with a Mass Combi package deal

Combi deal with MasterBus (MB version)

To integrate the Mass Combi into a MasterBus system in a simple
manner, Mastervolt can deliver all Mass Combi models in a MasterBus
version. The relevant product code includes the Mass Combi model of
your choice, complemented by a .

Combi deal with remote control (Remote
version)
In addition, Mastervolt can provide all Mass
Combi models in a Remote version so that the AC and DC power status
can be monitored remotely. The relevant product code includes the
Mass Combi model of your choice, plus an and an remote control
panel.

Specifications

Specifications sine wave inverter
Nominal DC voltage	12 V (10-15 V)
Output voltage	230 V (plus or minus 5 %), adjustable 180-250 V
Output frequency	50/60 Hz (plus or minus 0.05 %), configurable
Output waveform	true sine, Thd < 2.5 % under standard conditions
Continuous power at 25 degreesC / 77 degreesF, cos phi 1	2150 W
Max. peak load	4000 W
Max. efficiency	? 90 %
Max. ripple on DC (battery at full load)	< 5 %
No-load power consumption on DC (ON/inverter OFF/OFF)	9 W / 0.1 W / 0 W / 0.5 W
Parallel configuration	yes, up to 2 units
3-Phase configuration	no
Synchronise with mains/generator	yes
Specifications battery charger
Input voltage range	180-265 V
Max. input current	7.2 A
Max. charge current at 25 degreesC / 77 degreesF	100 A at 14.25 V, adjustable
Secondary charger output voltage	12 V
Secondary charger output current	5 A
No-load power consumption on AC	< 15 W
Battery temperature sensor	yes, included
Battery voltage sense	automatic compensation
Specifications transfer system
AC input (generator)	50 A (25 A switched, to short break output)
AC output 1	25 A (short break output)
AC output 2	50 A (power output)
AC input fuse	yes, resettable
Transfer speed	half seamless (25 ms max., 10 ms typical)
Transfer voltage range	180-265 V
Transfer frequency range	45-65 Hz
General specifications
Display/read-out	LED display
Dimensions, hxwxd	496 x 318 x 156 mm 19.5 x 12.5 x 6.1 inch
Weight	11 kg 24.3 lb
Delivered with	ICC remote panel and Apc remote panel
Approvals	CE, ABYC, E4
Technical specifications
Charge characteristic	3-step+ (IUoUo, fully automatic), Equalize
Battery types	AGM/gel/MLI/flooded/spiral/traction
Recommended battery capacity	approx. 200-600 Ah (based on gel batteries, may differ for other types)
Ground relay	yes, configurable
Temperature range (ambient temp.)	-25 degreesC to 60 degreesC, derating > 25 degreesC -13 degreesF to 140 degreesF
Cooling	maintenance-free vario fans
Protection degree	IP23 (vertical mounting)
Safety class	IEC protection class I
Humidity protection	conformal coating, max. 95 % relative humidity, non condensing
Protections	over temperature, over load, short circuit, high/low battery voltage
Power Assist	yes
MasterBus compatible	yes, in combination with a MasterBus Combi Interface

Product Data Sheet
