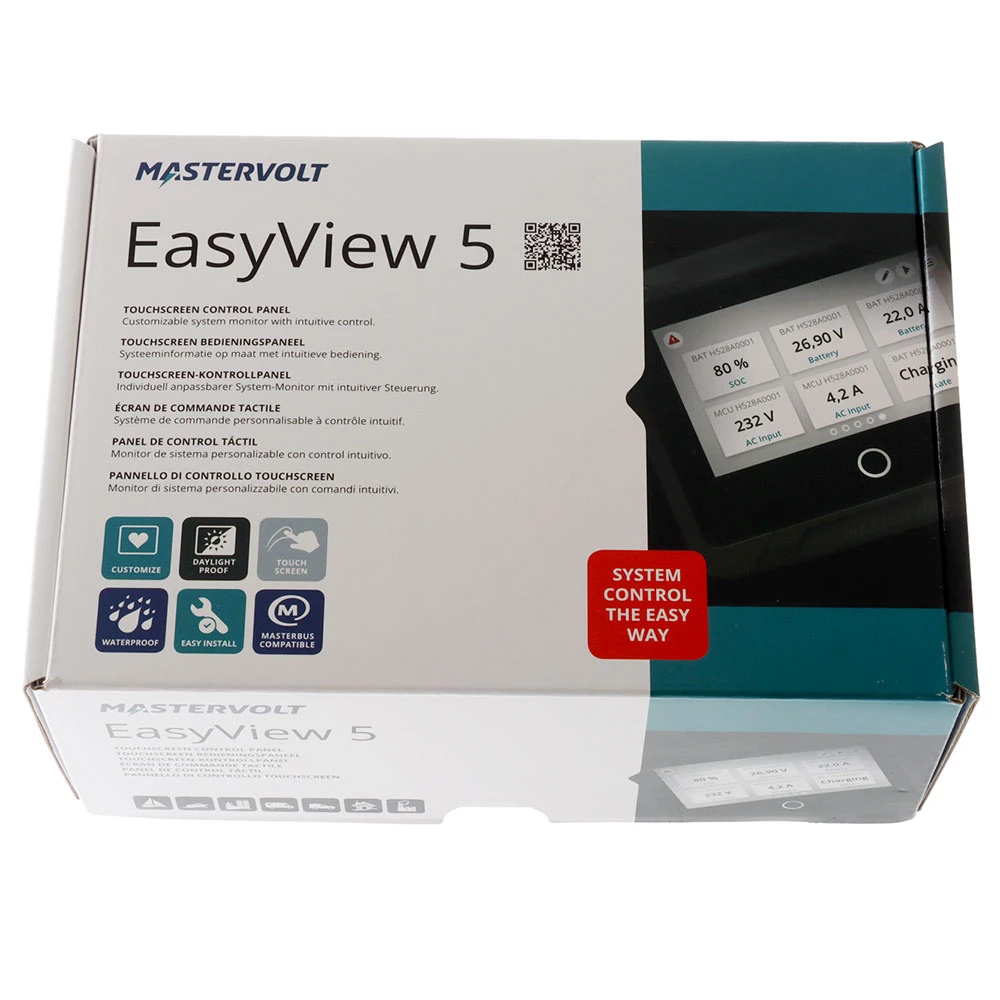

Mastervolt EasyView 5 Touch Waterproof System Monitor

Easy-to-read display and intuitive touchscreen

Controlling your Mastervolt system has never been easier! The Mastervolt EasyView 5 Touch Waterproof System Monitor features a sharp, waterproof display that is clearly readable in daylight. Thanks to the colour touchscreen and multi-language menu, the display is a pleasure to operate.

The Mastervolt EasyView 5 Touch Waterproof System Monitor completes any MasterBus system. With its handy functionality and compact size, the its ideal for yachts, vehicles, and stationary systems. Applicable in various markets such as marine, mobile (recreational and professional), infrastructure, offshore, off-grid and industrial. The possibilities are endless!

Customise Favourites
Customise favourite pages to meet your specific needs for information and control, to show information in the most convenient way.

Alarms and Logs
No surprises! The EasyView 5 helps to keep your system in top condition by assisting you with alerts. Logging of the alarms provides valuable insight in the operation of your system.

Mastervolt EasyView 5 Touch Waterproof System Monitor Features:

• Waterproof, ‘daylight readable’ colour display
• Intuitive touch control
• Customisable favourite pages
• Logbook for warnings and alarms
• Buzzer and Home button
• Easy mounting: front mount, wall mount or retrofit
• MasterBus powered, or 12/24 V input
• Easy updating through MasterBus and USB

Mastervolt EasyView 5 Touch Waterproof System Monitor Specifications:

• Power supply: MasterBus powered, or 12/24 V input (9 – 32 V)
• Resolution: 480 x 272 pixels
• Colour depth: 16 bits
• Display/read-out: 4.3 inch high contrast display with capacitive touch control
• Languages on display: ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR
• Mounting: panel mounting, flush mounting, MasterView Easy retrofit
• Alarms: buzzer integrated
• Dimensions, hxwxd: 113 x 127 x 43 mm (4.4 x 5.0 x 1.7 inch||)
• Weight: 0.315 kg (0.7 lb)

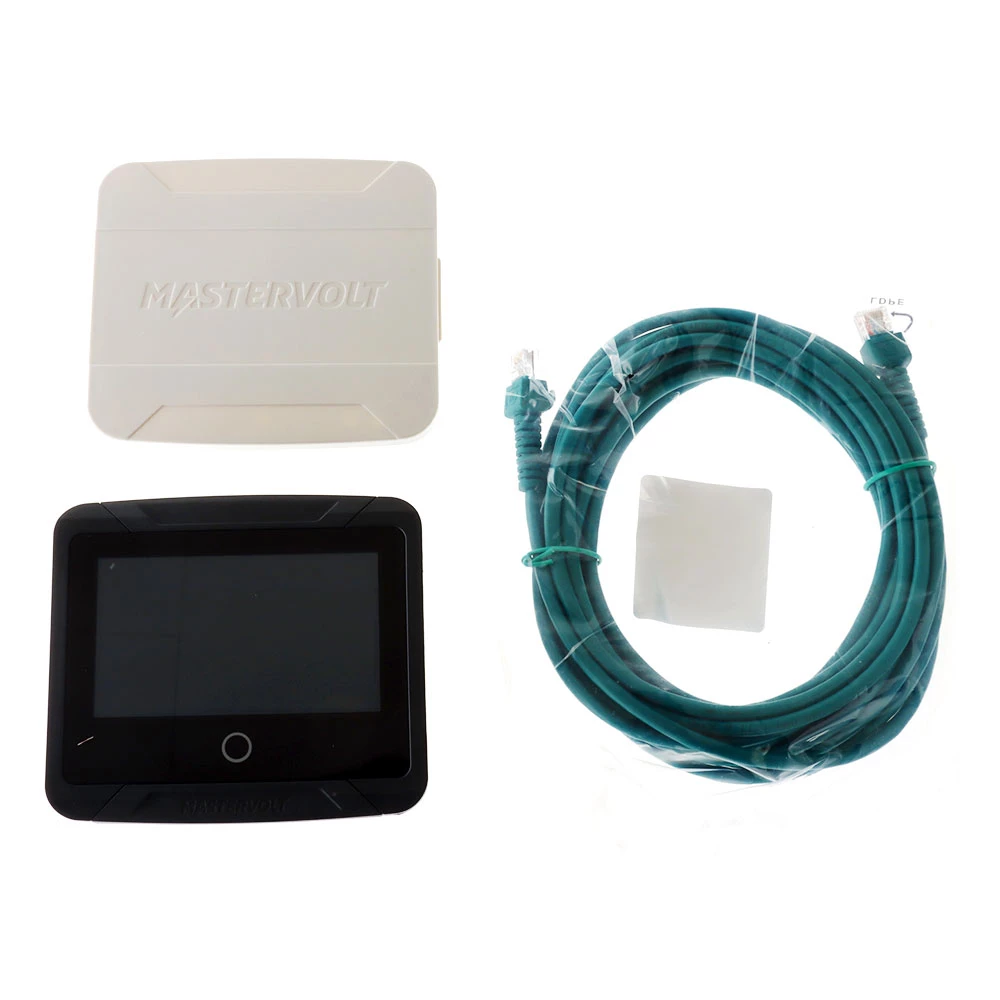

• Delivered with: UV protection cover, wall mount casing, MasterBus cable
• MasterBus connection: yes
• Power consumption:
• Connections: 2x MasterBus, USB, 12/24 V
• Temperature range (ambient temp.): -20 °C to 70 °C (-4 °F to 158 °F)
• Protection degree: IP67; waterproof front
