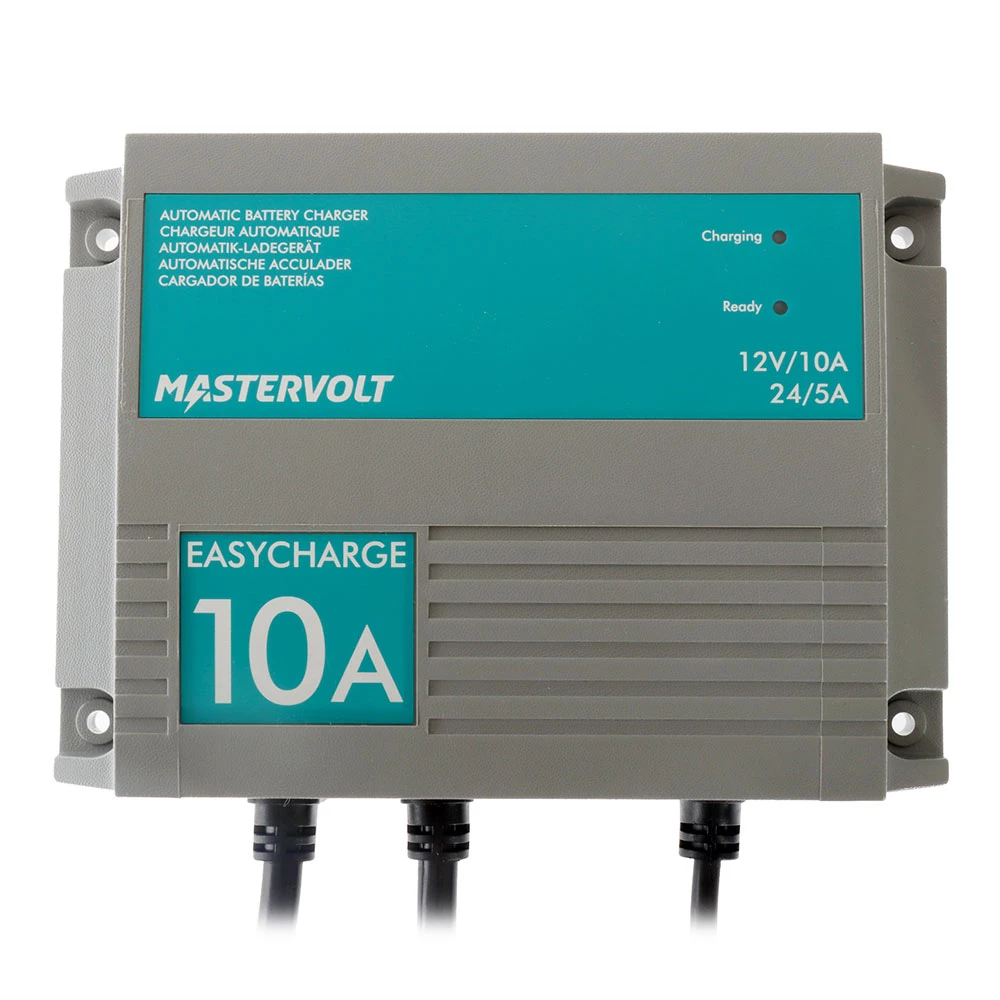

Mastervolt Easycharge 12V 10A Marine Battery Charger

Waterproof fixed-mount battery charger

The Mastervolt Easycharge 12V 10A Marine Battery Charger is a fixed-mount, waterproof unit fully sealed in an epoxy-filled, non-corrosive enclosure, and built to IP68 waterproofing standards, easily meeting global regulations like CE, CSA, CEC, and ABYC. The outputs are completely isolated and can be used in either series or parallel for higher voltage or current, including 12 or 24 V outputs.

Highly efficient and simple to use, the Mastervolt Easycharge 12V 10A Marine Battery Charger is designed for harsh environments, and is fully salt, shock, and vibration tested. A key feature is the ‘sense and send’ technology, which allows the charger to detect which batteries need the most charge and prioritise accordingly. The battery chargers have the ability to charge wet, AGM and Gel batteries, with universal input (120-230 V) for total worldwide freedom.

Mastervolt Easycharge 12V 10A Marine Battery Charger Features:

• Entry level model with Mastervolt 3-step+ charge characteristic
• Suitable for charging Gel, AGM and flooded batteries
• Full power up to 40 °C
• Quick charging function to extend battery life
• Includes cable & Euro plug (optionally also available with UK plug)
• Can charge one or two battery banks
• Sense-Send: determines which battery is being charged first
• Series and parallel configuration
• Stain-resistant and waterproof
• International certification

Mastervolt Easycharge 12V 10A Marine Battery Charger Specifications:

• Total charge current: 10 A at 12 V / 5 A at 24 V
• Recommended battery capacity: charge (based on 50% discharged battery): to 120 Ah
• Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
• AC connection: 1.2 m (4 ft) cable + Euro plug
• DC connection: ring terminals
• Galvanic isolation: yes
• Dimensions, hxwxd: 127 x 178 x 51 mm (5.0 x 7.0 x 2.0 inch)
• Weight: 2.8 kg (6.2 lb)
• Compliance: CE, ABYC
• Charge characteristic: IUoUo, automatic 3-step+ for Gel/AGM/flooded
• Temperature range (ambient temp.): -20 °C to 50 °C (-4 °F to 122 °F)
• Protection degree: IP68
• Protections: spark free, short circuit, reverse polarity, over voltage, current limited, over temperature
• MasterBus compatible: no
