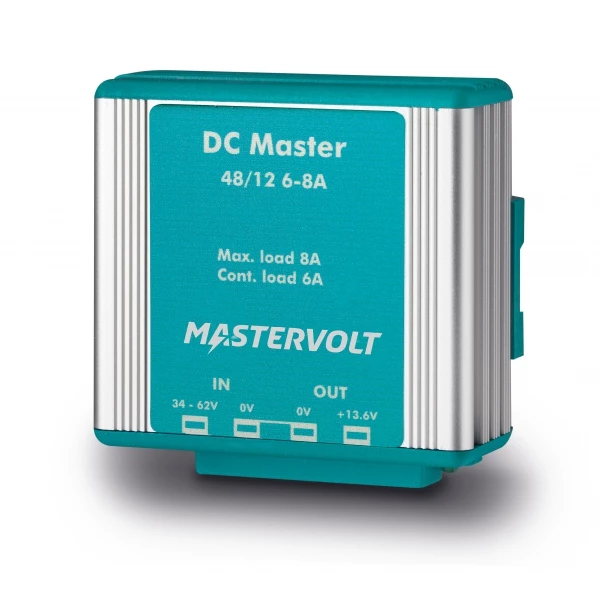

Mastervolt DC Master 48/12-6 DC-DC Converter

DC Master 48/12-6

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.

Features:

• Recreational and semi-professional use.
• Easy to install using included mounting bracket.
• Excellent price/performance ratio.
• Available in isolated and non-isolated version.



The non-isolated DC Master models have an electrical connection between  the input and output.
Features:

Features:

• Low costs.
• Efficient: low heat generation.
• Compact.
• Suited to applications with negative earthing.

                      The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:

• Extra touch-proof.
• Interference suppression for sensitive equipment.
• Available with negative or positive grounding.

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket, screws and fasteners.

Specifications:

General specifications
Nominal output voltage	13.6 V
Max. output power	109 W
Nominal output power	82 W
Max. output current (for 2 min. intervals)	8 A
Continuous output current	6 A
Nominal input voltage	48 V
Input voltage range (max.)	40-62 V DC (65 V)
Galvanic isolation	no
Stabilised	yes
Dimensions, hxwxd	89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch
Weight	0.27 kg 0.6 lb
Compliance	CE, E-mark
Technical specifications
DC consumption
Connections	fast-on
Temperature range (ambient temp.)	-25 degreesC to 80 degreesC, derating > 30 degreesC -13 degreesF to 176 degreesF
Cooling	natural cooling
Protection degree	IP53
