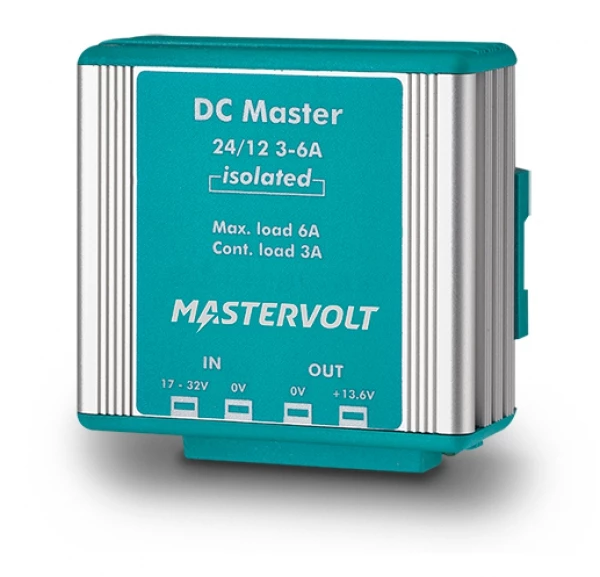

Mastervolt DC Master 24/12V 3-6A Isolated DC-DC Converter

Intelligent DC-DC converter

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, The Mastervolt DC Master DC-DC Converter offers stable power with the right current for any connected consumer.

Mastervolt DC Master DC-DC Converter Features:

• Recreational and semi-professional use
• Easy to install using included mounting bracket
• Excellent price/performance ratio
• Available in isolated and non-isolated version
• Extra touch-proof
• Interference suppression for sensitive equipment
• Available with negative or positive grounding
• Includes mounting bracket, screws and fasteners

Mastervolt DC Master DC-DC Converter Specifications:

• Nominal output voltage: 13.6 V
• Max. output power: 82 W
• Nominal output power: 41 W
• Max. output current (for 2 min. intervals): 6 A
• Continuous output current: 3 A
• Nominal input voltage: 24 V
• Input voltage range (max.): 20-32 V DC (35 V)
• Galvanic isolation: yes
• Stabilised: yes
• Dimensions, hxwxd: 89 x 87 x 50mm (3.5 x 3.4 x 2.0in)
• Weight: 0.29kg (0.6lb)
• Compliance: CE, E-mark
• DC consumption:
• Connections: fast-on
• Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30 °C (-13 °F to 176 °F)
• Cooling: natural cooling
• Protection degree: IP53
