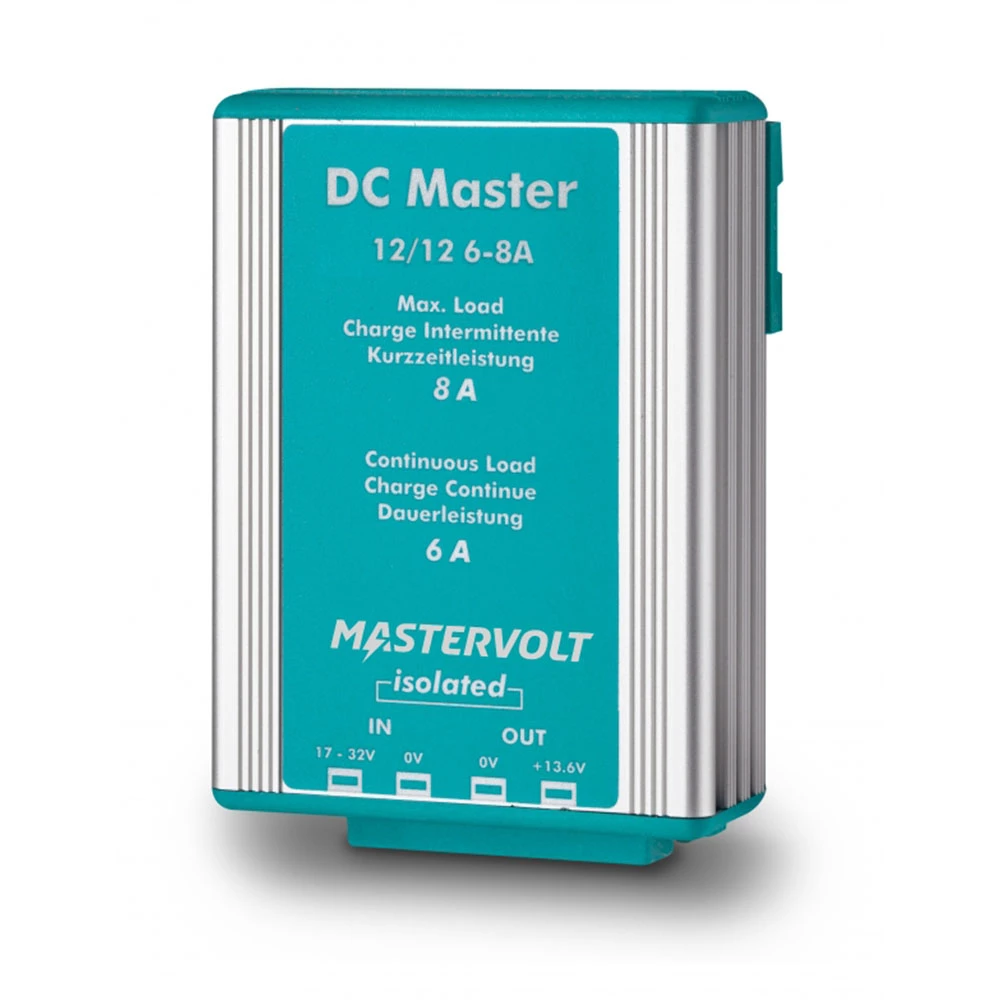

Mastervolt DC Master 12/12-6 Isolated

DC Master 12/12-6 (Isolated)

The required voltage for DC current can vary. Some equipment
requires 24 V, while onboard equipment usually requires 12 V. For
custom DC current, Mastervolt offers a series of compact and made
to measure DC-DC converters for both 12 V and 24 V battery systems
that offer stable power with the right current for any connected
consumer. There is a wide range of DC Master converters available,
including insulated and non-insulated models.

Features:

• Recreational and semi-professional use.
• Easy to install using included mounting bracket.
• Excellent price/performance ratio.
• Available in isolated and non-isolated version.

The non-isolated DC Master models have an electrical connection
between  the input and output.
Features:

Features:

• Low costs.
• Efficient: low heat generation.
• Compact.
• Suited to applications with negative earthing.

The isolated DC Master models provide galvanic isolation between
input and output circuits.
Features:

• Extra touch-proof.
• Interference suppression for sensitive equipment.
• Available with negative or positive grounding.

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of
extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket,
screws and fasteners.

Specifications

General specifications
Nominal output voltage	13.6 V
Max. output power	108 W
Nominal output power	82 W
Max. output current (for 2 min. intervals)	8 A
Continuous output current	6 A
Nominal input voltage	12 V
Input voltage range (max.)	10-15.5 V DC (16 V)
Galvanic isolation	yes
Stabilised	yes
Dimensions, hxwxd	127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch
Weight	0.44 kg 1.0 lb
Approvals	CE, E-mark
Technical specifications
DC consumption	< 15 mA
Connections	fast-on
Temperature range (ambient temp.)	-25 degreesC to 80 degreesC, derating > 30 degreesC -13 degreesF to 176 degreesF
Cooling	natural cooling
Protection degree	IP53

Product Data Sheet
