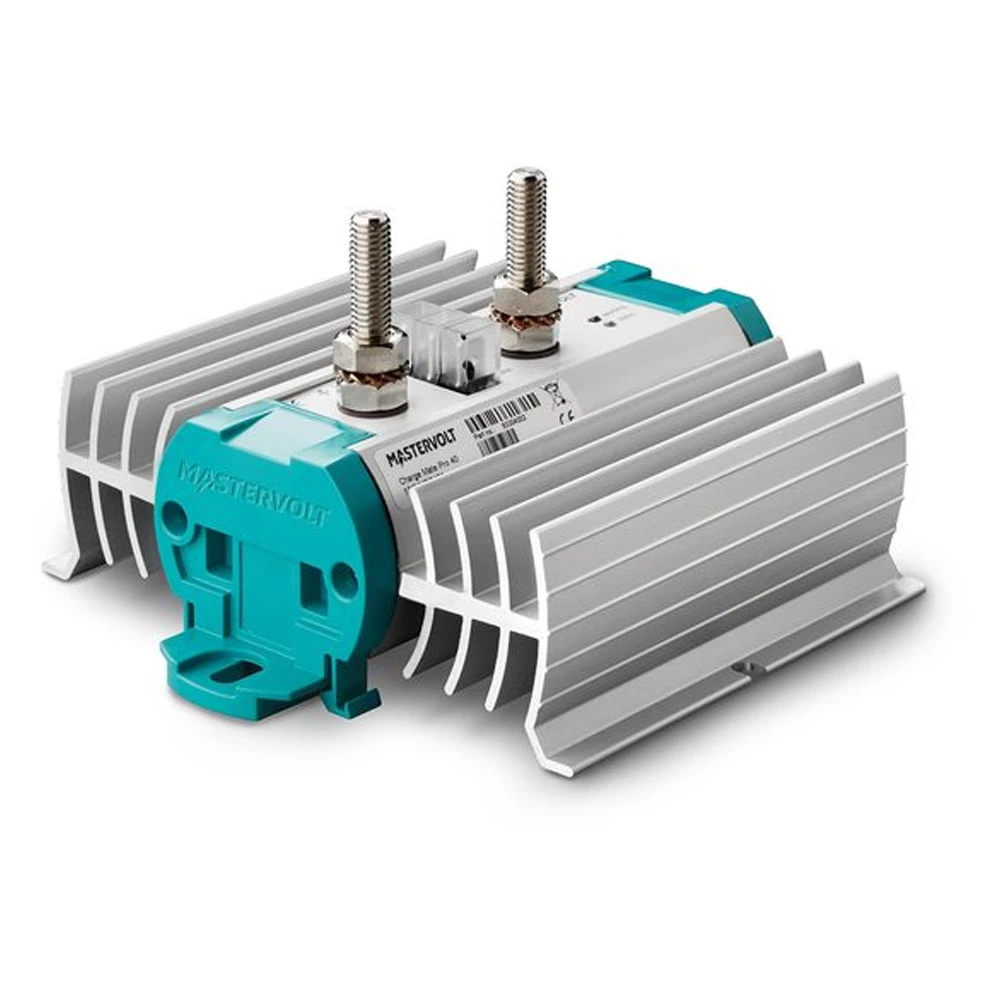

Mastervolt Charge Mate Pro 40 Battery Charger

Two batteries? No problem! The Charge Mate series
connects both batteries during charging and keeps them isolated
when discharging.

The Charge Mate Pro 40 provides additional functionality by
limiting the charge current to the second battery to 40 Amps, so
the main battery is charged with priority. The return current is
automatically blocked, which reduces power dips of the onboard
network. An emergency-start function is possible by connecting an
optional bypass switch.

Details:

Features:

• Electronic charge coupling with very low voltage drop
• Charge current secondary battery limited to 40 Amps
• High system reliability by prioritized charging of the main
  battery
• Unidirectional; blocks return current under all circumstances,
  which reduces power dips of the onboard network
• Suitable for all kinds of battery chargers and alternators
• LED status indication
• IP67 electronics in a corrosion-resistant casing with aluminum
  heat sink

Specifications:

Name	Value
Amperage	40 Amps
Multi Bank Chargers	1 Bank
Type	Battery Isolator/Combiner
Voltage	12/24 Volt Systems
