Mastervolt BattMan Pro Battery Monitor 12/24V DC

Monitor your batteries at a glance

The Mastervolt BattMan Pro Battery Monitor has a large splash-proof display and power bar designed to provide critical information about the status of your battery bank. Plus it also displays the remaining time until your battery needs to be charged and stores special battery status events. A durable and reliable battery monitor at a price that won’t break the bank.

Mastervolt BattMan Pro Battery Monitor Specifications:

• Number of battery outlets: 2; service (fully), starter (voltage)
• Display/read-out: voltage, current, amp-hours, time remaining, battery capacity in %, special battery status events
• Languages on display: universal
• Built-in depth: 72.5 mm (2.9 inch)
• Dimensions: Ø 64 mm, depth 79 mm

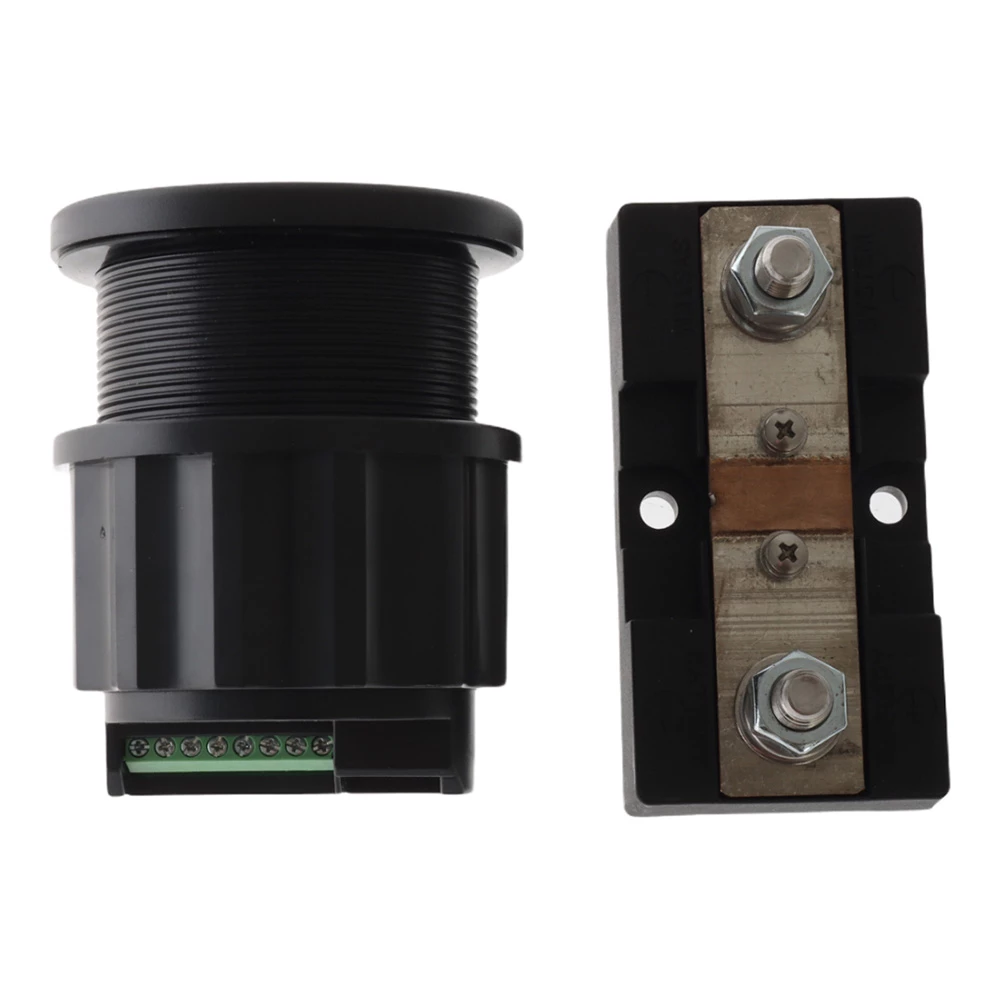

• Dimensions shunt, hxwxd: 87 x 45 x 35 mm (3.4 x 1.8 x 1.4 inch)
• Weight: 0.15 kg (0.3 lb)
• Max. Ah capacity: 9999 Ah
• Supply voltage: 9-35 V
• Voltage range: 0-35 V
• Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
• Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
• Voltage resolution: 0.1 V
• Voltage accuracy: ± 0.3%
• Shunt specification: 500 A / 50 mV (service set)
• Current measurement range: 0-500 A
• Current accurancy: ± 0,4 %
• Battery alarm contact: yes, potential free
• Remaining time indication: yes
• Historical data: yes
• MasterBus compatible: no
• Connection cable (6-wire) necessary: yes
• Modular cable necessary: no
