Mastervolt AGM Battery And ProMariner ProSport Charger For Minn Kota 90Ah 36V

Increased power and performance

Power up with the Mastervolt AGM Battery with ProMariner
ProSport Charger. This power pack comes complete with 3
Mastervolt MV 12/90 Ah AGM Batteries, the ProMariner ProSport 6 PFC
Gen3 1-Bank Battery Charger 6A, and cables. Quality made for years
of reliable service.

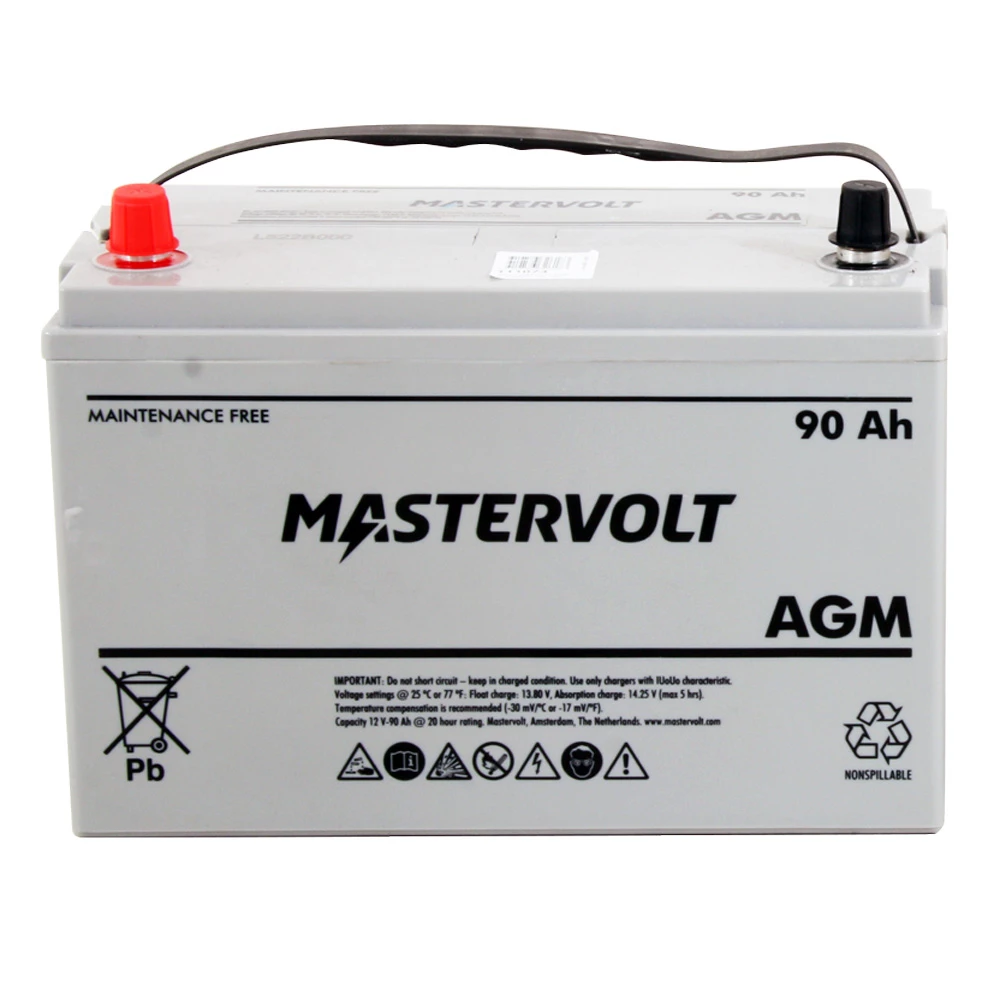

The Battery
The Mastervolt AGM Series Battery utilise Absorbed
Glass Mat (AGM) separators and advanced technology to provide
maintenance-free and completely sealed battery power. In AGM
batteries, the electrolyte (mixture of water and sulphuric acid) is
largely absorbed in glass fibre so there is no gas formation with
normal use. It can be installed anywhere because it doesn’t require
any ventilation plus its compact size can fit small areas. The
construction gives a very a fast discharge at very high currents so
it’s ideal for systems that require high currents like starting an
engine. The Mastervolt AGM Battery is also built to withstand shock
and vibration encountered in the marine environment. So if you’re
looking for a battery tough enough to do the job, this is it.

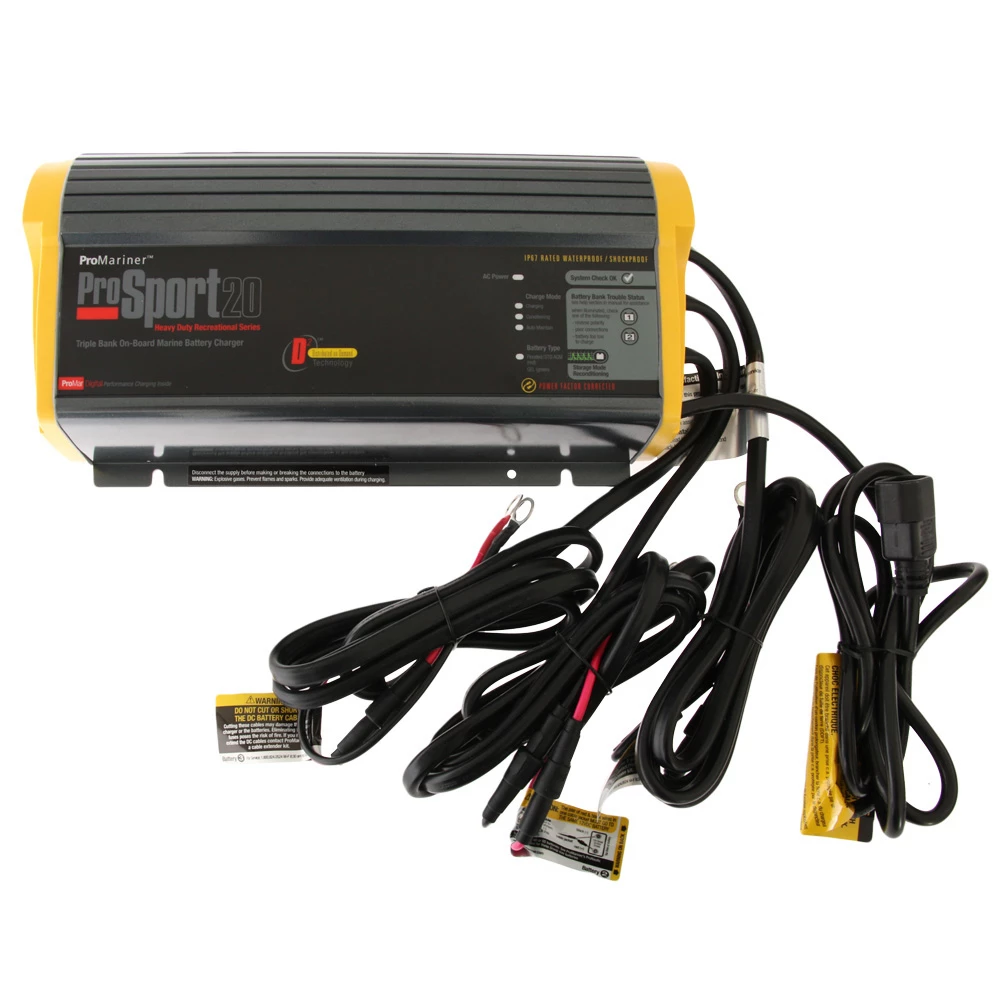

The Charger
The ProMariner ProSport 20 Plus PFC Gen3 3-Bank Battery
Charger is an on-board marine battery charger that
incorporates all-digital microprocessor control, like no ither.
ProSport provides an automatic installation feedback with its
exclusive “System Check OK” and individual “Battery Bank Trouble”
LED indicators, and also has the most advanced energy saving mode.
After fully charging and conditioning batteries, ProSport’s Energy
Saver Mode will monitor and Auto Maintain batteries only when
needed to maintain a full state of charge, resulting in maximum
reserve power performance and lower AC power consumption and
operating costs.

ProSport also incorporates Distributed-On-Demand Charging
technology, taking 100 percent of the available charging amps and
distributing them to any one or combination of all batteries as
needed for faster charging. ProSport is 100 percent waterproof and
shockproof, weighing 40 percent lighter than older technology epoxy
filled chargers providing cooler operation and greater
reliability.

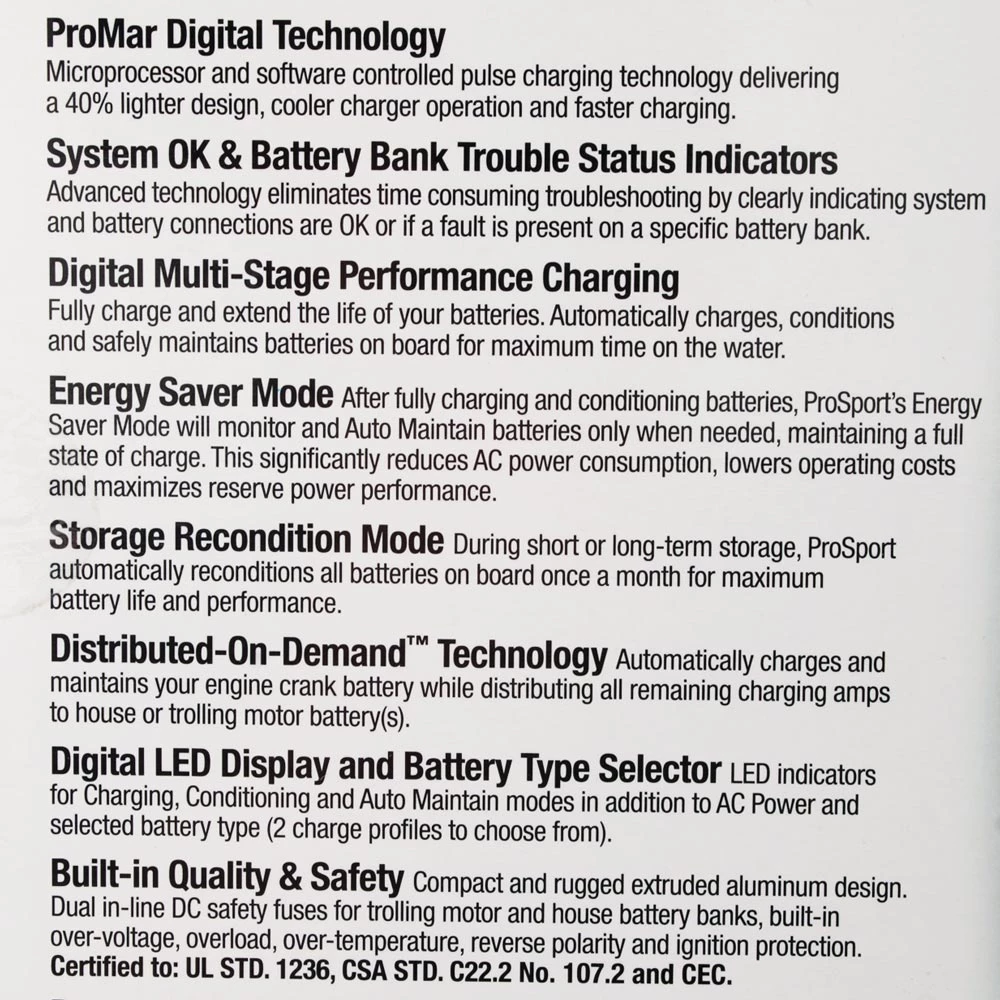

ProMar Digital Technology
Microprocessor and software controlled pulse charging technology
delivering a 40 percent lighter design than the previous generation
of epoxy filled chargers, cooler charger operation and faster
charging.

System OK and Battery Bank Trouble Status Indicators
Advanced technology eliminates time consuming troubleshooting by
clearly indicating system and battery connections are OK or if a
fault is present on a specific battery bank

Digital Multi-Stage Performance Charging
Fully charge and extend the life of your batteries – automatically
charges, conditions and safely maintains all batteries on board for
maximum time on the water

Energy Saver Mode
After fully charging and conditioning batteries, ProSport’s Energy
Saver Mode will monitor and Auto Maintain batteries only when
needed, maintaining a full state of charge. This significantly
reduces AC power consumption, lowers operating costs and maximises
reserve power performance.

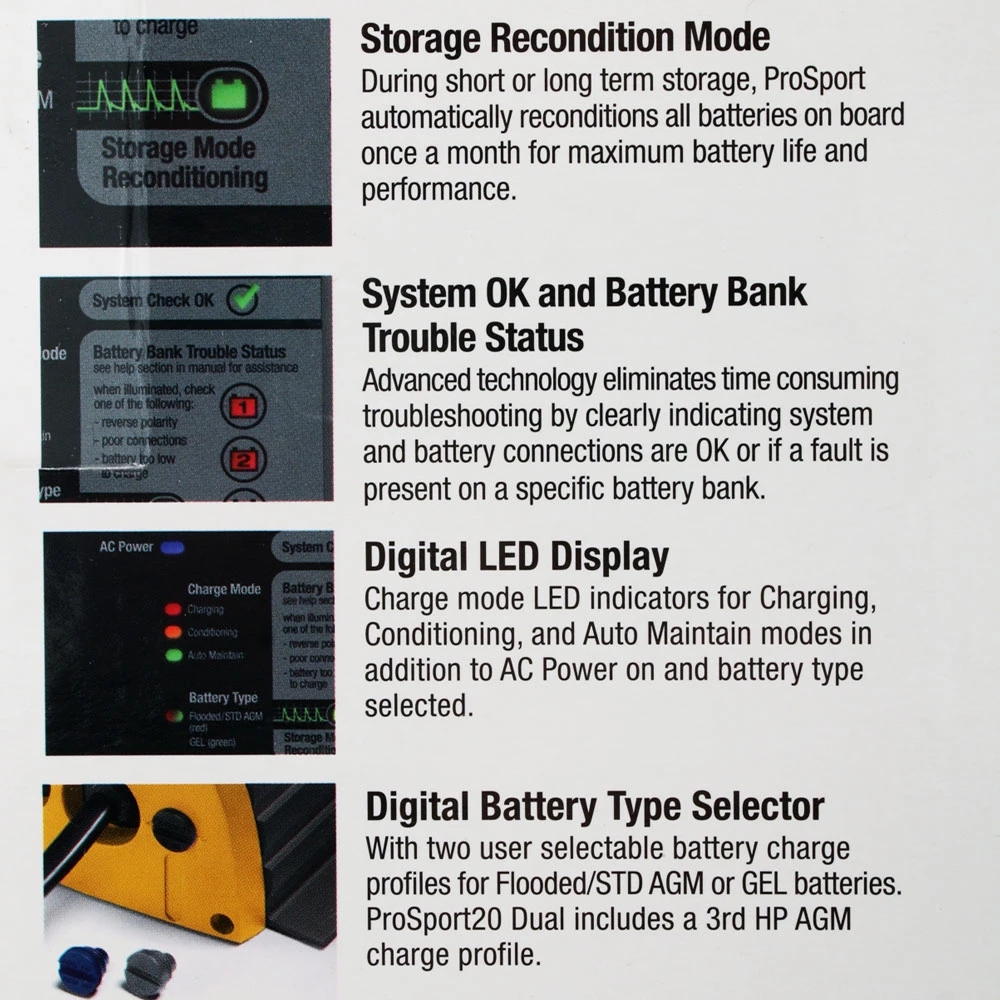

Storage Recondition Mode
During short or long-term storage, ProSport automatically
reconditions all batteries on board once a month for maximum
battery life and performance.

Distributed-On-Demand Technology
Automatically charges and maintains your engine crank battery while
distributing all remaining charging amps to trolling motor or house
battery(s)

Digital LED Display and Battery Type Selector
LED indicators for Charging, Conditioning and Auto Maintain modes
in addition to AC power and selected battery type (2 charge
profiles to choose from with a 3rd high performance AGM HP profile
on the ProSport20 Dual only)

Built-in Quality and Safety
Compact and rugged extruded aluminium design, dual in-line DC
safety fuses for trolling motor and house battery banks. Built-in
over-voltage, overload, over-temperature, reverse polarity and
ignition protection

Mastervolt AGM Series Battery Features:

• Ideal universal battery
• Excellent starter function
• Perfect upgrade for wet lead acid batteries
• Same initial power surge in an
• AGM 12/90 Ah as 180 Ah wet lead-acid battery
• Glass-fibre technology ensures low internal resistance
• Use of thicker plates allows deep discharging
• Also for cyclical use
• Two-year warranty

Mastervolt AGM Series Battery Specifications:

• Code: 62000900
• Model: AGM 12/90
• Nominal Voltage: 12v
• Capacity C20°: 90Ah
• CCA to DIN: 535A
• CCA to SAE: 850A
• Max. Outer Dimensions: 330 x 173 x 237mm
• Weight: 28kg

Product Data Sheet

ProMariner ProSport 20 Plus PFC Gen3 3-Bank Battery Charger
Features:

• System OK and Battery Bank Trouble Status Indicators
• Digital Multi-Stage Performance Charging
• Energy Saver Mode
• Storage Recondition Mode
• Distributed-On-Demand Technology
• Digital LED Display and Battery Type Selector
• Built-in Quality and Safety
• 2 digitally selectable charge profiles including a once-a-month
  storage reconditioning mode for extending battery life
• Pre-wired for Easy Installation
• PFC – Universal AC

ProMariner ProSport 20 Plus PFC Gen3 3-Bank Battery Charger
Specifications:

• Part number: 43029
• DC Voltage Systems: 12/24/36
• Amps: 20
• No. of Batteries: 3
• AC and DC Cable Length: 6’/6’/6′
• Dimensions: 12.125″ x 7.25″ x 2.75″
• Weight: 6lbs
• Global AC in (PFC): 100-260V AC 50/60 Hz

Note: For Minn Kota
