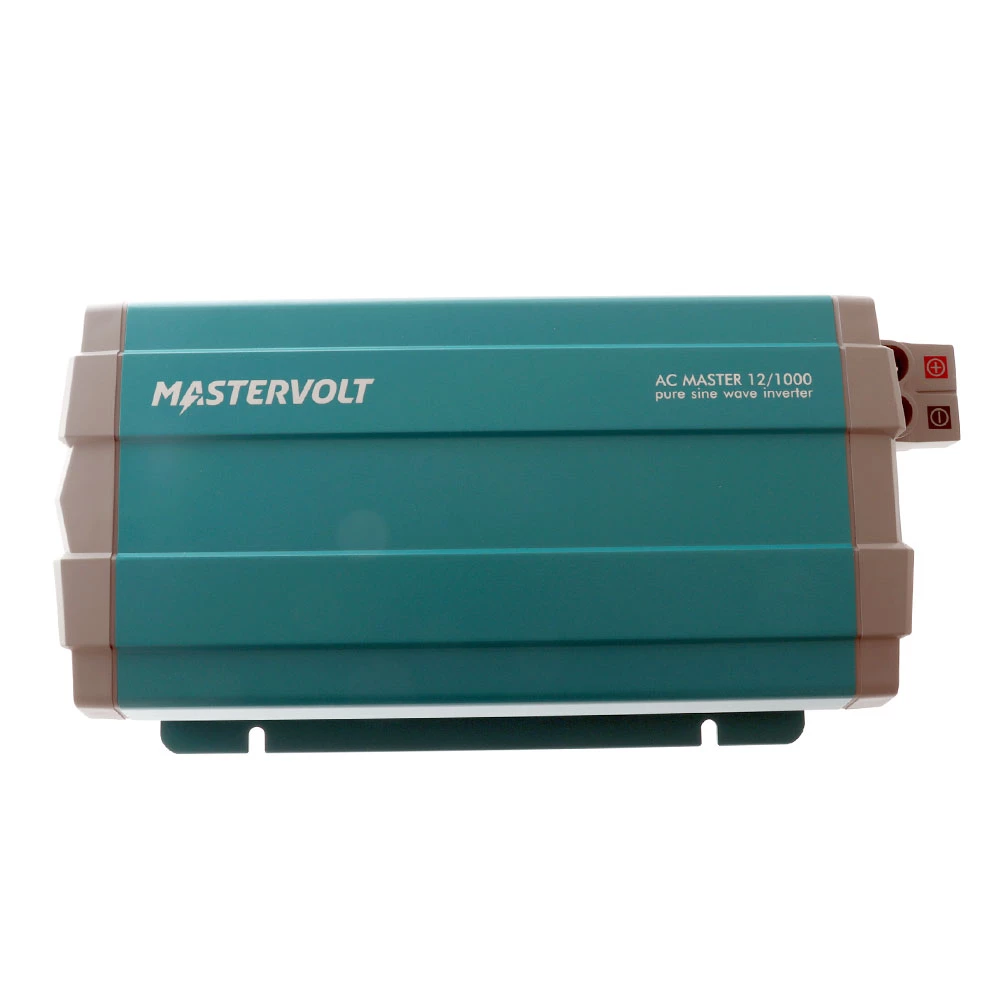

Mastervolt AC Master Pure Sine Wave Inverter 1000W 12V With AU/NZ Plug

Convert DC energy into reliable AC power

The Mastervolt AC Master Pure Sine Wave Inverter converts 12V DC energy from your battery into a reliable 230V AC output power, perfect for outdoor recreational use. It’s easy to install and provides maximum output even under the most demanding situations. The pure sine wave technology ensures the power output is of high quality to protect sensitive equipment. This inverter also features an automatic power-saving system which is great for extended use. Plus, it’s protected against overload, short circuits and high or low battery voltage. If you’re looking for high functionality, quality and complete value for money, the Mastervolt AC Master Pure Sine Wave Inverter is the right one for the job.

Mastervolt AC Master Pure Sine Wave Inverter Features:

• Converts DC to AC
• Pure sine wave technology ensures sensitive equipment are protected
• Automatic power saving system
• Compact and lightweight
• Easy installation
• Overload, over temperature, short circuit, high or low battery protection
• Variable speed fan for quiet operation at low power

Mastervolt AC Master Pure Sine Wave Inverter Specifications:

General

• Code: 28411000
• Nominal battery voltage: 12V DC
• Output voltage; 200 / 220 / 230 / 240V – 50/60Hz (selectable)
• Output wave form: True sine
• Recommended battery capacity: ≥ 130 Ah
• Continuous power at 25C / 77F, cos phi 1: 1000W
• Continuous power at 40C / 104F, cos phi 1: 1000W
• Peak load (1min):
• Peak load (1sec):
• AC connection: With NZ/AU plug
• Efficiency: 92%
• Display LED indication: battery voltage, load level, status
• Alarms: potential-free alarm contact
• Dimensions (H x W x D): 200 x 372 x 83 mm
• Weight: 3.3kg
• Approvals: CE, E-mark, RCM

Technical

• Technology: High frequency, input and output fully isolated
• Input current (nominal load): 100A
• No-load power consumption (Energy saving mode):
• Minimal DC fuse (slow blow): 125A
• Minimal cable size: 35 mm²
• Harmonic distortion typical:
• Cos phi: all power factors allowed
• Temperature range (ambient temp.): -20C to 60C, derating power > 40C
• Protection degree: IP21, horizontal wall mounting
• Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• Cooling: temperature and load controlled fan
• Masterbus compatibility: Yes, using a MasterBus AC Master Interface
